服务支持

高阶性能 & PCIe 扩充型 (DS系列)

ProductModelCPUChipsetI/OExpansion

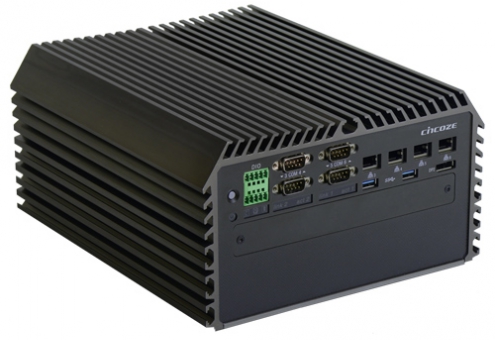

DS-1100 SeriesDS-1100 Series7/6th Gen. Intel® Core i3 / i5 / i7Intel® Q1702x LAN
6x USB 3.2 Gen1x1 (5Gbps)
2x USB 2.0 (480Mbps)
2x COM
1x DVI-I
2x DisplayPort		1x CFM Interface
2x CMI Interfaces
3x Full-size Mini-PCIe Sockets
3x Universal I/O Brackets
1x SIM Socket
2x Antenna Holes
Up to 2x PCI/PCIe slot
DS-1000DS-10004th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000LDS-1000L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000PDS-1000P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1001DS-10014th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001LDS-1001L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001PDS-1001P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1002DS-10024th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002LDS-1002L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002PDS-1002P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot

高阶性能 & 紧凑型 (DX系列)

ProductModelCPUChipsetI/OExpansion
DX-1000DX-1000Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type ProcessorsIntel C2361x DVI-I
2x DisplayPort
2x GbE LAN
4x COM
8x USB 3.2 Gen1x1 (5Gbps)		1x CFM Interface
3x CMI Interface
4x Full-size Mini-PCIe Sockets
1x SIM Socket

中阶性能 & 低功耗型 (DI系列)

ProductModelCPUI/OExpansion
DI-1000DI-1000Onboard Intel® Core™ i3-6100U Processor
Onboard Intel® Core™ i5-6300U Processor
Onboard Intel® Core™ i7-6600U Processor		1x DVI-I
1x DisplayPort
2x GbE LAN
6x COM
4x USB 3.2 Gen1x1 (5Gbps)
2x USB 2.0 (480Mbps)
1x PS/2
8x Optical Isolated DIO		1x CFM Interface
1x CMI Interface
2x Full-size Mini-PCIe Sockets
1x SIM Socket

入门性能 & PCIe 扩充型 (DE系列)

ProductModelCPUI/OExpansion
DE-1000LDE-1000LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1000PDE-1000PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1001LDE-1001LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1001PDE-1001PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1002LDE-1002LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot
DE-1002PDE-1002PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot

入门性能 & 紧凑型 (DC系列)

ProductModelCPUI/OExpansion
DC-1000DC-1000Intel® Atom™ D5252x LAN, 4x USB, 4x COM, 1x DVI-I, 4x DI/4x DO2x Mini-PCIe Slot

高效工业平板电脑 (CV-100/P2000系列)

ProductModelDisplayCPUI/OExpansion
CV-112 / P2102CV-112 / P210212.1" TFT 800x600 (4:3)Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-112 / P2102ECV-112 / P2102E12.1" TFT 800x600 (4:3)Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-112 / P2002CV-112 / P200212.1" TFT 800x600 (4:3)Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CV-112H / P2002 SeriesCV-112H / P2002 Series12.1" TFT
1024x768 (4:3)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-112 / P2002ECV-112 / P2002E12.1" TFT 800x600 (4:3)Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN)
CV-115 / P2002 SeriesCV-115 / P2002 Series15" TFT
1024x768 (4:3)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-117 / P2002 SeriesCV-117 / P2002 Series17" TFT
1280x1024 (5:4)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-119 / P2002 SeriesCV-119 / P2002 Series19" TFT
1280x1024 (5:4)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W115 / P2002 SeriesCV-W115 / P2002 Series15.6" TFT
1366x768 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W115FH / P2002 SeriesCV-W115FH / P2002 Series15.6" TFT
1920x1080 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W121 / P2002 SeriesCV-W121 / P2002 Series21.5" TFT
1920x1080 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W124 / P2002 SeriesCV-W124 / P2002 Series24" TFT
1920x1080 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)

入门工业平板电脑 (CV-100/P1000系列)

ProductModelDisplayCPUI/OExpansion
CV-112 / P1101CV-112 / P110112.1" TFT
800x600 (4:3)		Intel® Atom® x7-E3950
Intel® Pentium® N4200		1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CV-112 / P1001CV-112 / P100112.1" TFT
800x600 (4:3)		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe
CV-112 / P1001ECV-112 / P1001E12.1" TFT
800x600 (4:3)		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe, 2x Universal I/O Bracket

高效超窄边框工业平板电脑 (CV-200/P2000系列)

ProductModelDisplayCPUI/OExpansion
CV-221C / P2002 SeriesCV-221C / P2002 Series21.5” TFT 1920x1080 (16:9)Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)

高效阳光下可视工业平板电脑 (CS-100/P2000系列)

ProductModelDisplayCPUI/OExpansion
CS-112H / P2002 SeriesCS-112H / P2002 Series12.1" TFT
1024x768 (4:3)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-115 / P2002 SeriesCS-115 / P2002 Series15" TFT
1024x768 (4:3)
1800 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W115FHC / P2102CS-W115FHC / P210215.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W115FHC / P2102ECS-W115FHC / P2102E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W115FHC / P2002CS-W115FHC / P200215.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CS-W115FHC / P2002ECS-W115FHC / P2002E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN)
CS-117 / P2002 SeriesCS-117 / P2002 Series17" TFT
1280x1024 (5:4)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-119 / P2002 SeriesCS-119 / P2002 Series19" TFT
1280x1024 (5:4)
1600 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W115FH / P2002 SeriesCS-W115FH / P2002 Series15.6" TFT
1920x1080 (16:9)
1200 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W121 / P2002 SeriesCS-W121 / P2002 Series21.5" TFT
1920x1080 (16:9)
1000 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W124 / P2002 SeriesCS-W124 / P2002 Series24" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Mini-PCIe and Support CFM (PoE, IGN)

入门阳光下可视工业平板电脑 (CS-100/P1000系列)

ProductModelDisplayCPUI/OExpansion
CS-W115FHC / P1101CS-W115FHC / P110115.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom® x7-E3950
Intel® Pentium® N4200		1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CS-W115FHC / P1001CS-W115FHC / P100115.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe
CS-W115FHC / P1001ECS-W115FHC / P1001E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe, 2x Universal I/O Bracket

高效开放式架构平板电脑 (CO-100/P2000系列)

ProductModelDisplayCPUI/OExpansion
CO-119C / P2002 SeriesCO-119C / P2002 Series19" TFT
1280x1024 (5:4)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CO-W121C / P2002 SeriesCO-W121C / P2002 Series21.5" TFT
1920x1080 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CO-W124C / P2002 SeriesCO-W124C / P2002 Series24" TFT
1920x1080 (16:9)		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

工业触控显示器 (CV-100/M1000系列)

ProductModelLCD SizeTouch TypeResolution / BrightnessI/O
CV-108 / M1001CV-108 / M10018.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-110 / M1001CV-110 / M100110.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-110H / M1001CV-110H / M100110.4" TFTResistive / Capacitive1024x768 (XGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-112 / M1001CV-112 / M100112.1" TFTResistive / Capacitive800x600 (SVGA) / 450 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-112H / M1001CV-112H / M100112.1" TFTResistive / Capacitive1024x768 (XGA) / 500 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-115 / M1001CV-115 / M100115" TFTResistive / Capacitive1024x768 (XGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W115 / M1001CV-W115 / M100115.6" TFTResistive / Capacitive1366x768 (WXGA) / 400 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-117 / M1001CV-117 / M100117" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-119 / M1001CV-119 / M100119" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W121 / M1001CV-W121 / M100121.5"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W124 / M1001CV-W124 / M100124"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio

阳光下可视触控显示器 (CS-100/M1000系列)

ProductModelLCD SizeTouch TypeResolution / BrightnessI/O
CS-108 / M1001CS-108 / M10018.4" TFT1600 nitsCapacitive800x600 (SVGA)
CS-110H / M1001CS-110H / M100110.4" TFT1500 nitsCapacitive1024x768 (XGA)
CS-112H / M1001CS-112H / M100112.1" TFT1500 nitsCapacitive1024x768 (XGA)
CS-115 / M1001CS-115 / M100115" TFT1800 nitsCapacitive1024x768 (XGA)
CS-W115FHC / M1001CS-W115FHC / M100115.6" TFT1500 nitsCapacitive1920x1080 (Full HD)
CS-117 / M1001CS-117 / M100117" TFT1500 nitsCapacitive1280x1024 (SXGA)
CS-119 / M1001CS-119 / M100119" TFT1600 nitsCapacitive1280x1024 (SXGA)
CS-W121C / M1001CS-W121C / M100121.5" TFT1000 nitsCapacitive1920x1080 (Full HD)
CS-W124C / M1001CS-W124C / M100124" TFT1500 nitsCapacitive1920x1080 (Full HD)

高效系统模块 (P2000系列)

ProductModelCPUMemoryI/OExpansion
P2002 SeriesP2002 SeriesIntel® Core™ i5-6300U
Intel® Core™ i3-6100U		2x DDR4 SO-DIMM Socket, Support Up to 32 GB1x VGA
1x DVI-D
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
1x USB 2.0 (480Mbps)
6x COM
16x DIO		2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)

显示器模块 (M1000系列)

ProductModelVideo InputI/OFeatures
M1001M10011x VGA, 1x DVI-D, 1x DisplayPort1x USB 2.0, 1x COM, 1x Audio Input2x 5W Internal Speaker with AMP, Multi-language OSD Function

显示屏模块 (CV-100系列)

ProductModelLCD SizeBrightnessTouch TypeResolution
CV-112CV-11212.1" TFT-LCDResistive / Capacitive800x600 (SVGA) / 450 nitsN/A

阳光下可视模块 (CS-100系列)

ProductModelLCD SizeBrightnessTouch TypeResolution
CS-W115FHCCS-W115FHC15.6" TFT-LCD1500 nitsCapacitive1920x1080 (Full HD)

嵌入式 MXM GPU 模塊

ProductModel产品描述兼容型号
MXM-RTX3000MXM-RTX3000Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal PadGM Series
MXM-P2000MXM-P2000NVIDIA® Quadro® 嵌入式 P2000 MXM GPU 套件GM-1000
MXM-E9174MXM-E9174AMD Radeon™ 嵌入式 E9174 MXM GPU 套件GM-1000

CMI 模块

ProductModelCategoryDescriptionCompatible Model
CMI-CD100CMI-CD100I/OCMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out)DS-1100 Series
CMI-ICD100CMI-ICD100I/OCMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out)DS-1100 Series
CMI-LAN104CMI-LAN104LANCMI Module with 4x Intel GbE LAN, RJ45 PortDI-1000
DS-1000
DS-1001
DS-1002
DS-1100
DS-1101
DS-1102
CMI-LAN204CMI-LAN204LANCMI Module with 4x Intel GbE LAN, RJ45 PortDE-1000
DE-1001
DE-1002
CMI-M12LAN104CMI-M12LAN104LANCMI Module with M12 Connector, 4x Intel GbE LANDI-1000
DS-1100
DS-1101
DS-1102
CMI-PoE104CMI-PoE104PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5WDS-1000
DS-1001
DS-1002
DS-1100
DS-1101
DS-1102
CMI-PoE114CMI-PoE114PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5WDI-1000
CMI-PoE204CMI-PoE204PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5WDE-1000
DE-1001
DE-1002
CMI-M12PoE104CMI-M12PoE104PoECMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5WDS-1100
DS-1101
DS-1102
CMI-M12PoE114CMI-M12PoE114PoECMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5WDI-1000

CFM 模块

ProductModelCategoryDescriptionCompatible Model
CFM-IGN100CFM-IGN100IGNCFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection SelectableP2002 Series
P2002E Series
CFM-PoE100CFM-PoE100PoEPoE Control Function Module, Power Boost 50-57VP2002
CFM-PoE101CFM-PoE101PoEPoE Control Function Module, Power Boost 50-57VP2002E

转接卡

ProductModelDescriptionExpansionCompatible Model
RC-E4-01RC-E4-01Riser Card with 1x PCIex4 Slot1x PCIex4P2002E

前挡板

ProductModelDescriptionCompatible Model
FB20FB20DS-1100 Front Bezel with 4x DB9, DIODS-1100
FB21FB21DS-1101 Front Bezel with 4x DB9, DIODS-1101
FB22FB22DS-1102 Front Bezel with 4x DB9, DIODS-1102

通用型支架

ProductModelDescriptionCompatible Model
UB0503UB0503Universal Bracket with 2x DB9 CutoutP2002
UB0504UB0504Universal Bracket with 4x DB9 CutoutP2002
UB0511UB0511Universal Bracket with 2x RJ45 CutoutP2002
UB0514UB0514Universal Bracket with 2x USB CutoutP2002
UB0610UB0610Universal Bracket with 4x M12 CutoutDS-1100
UB0612UB0612Universal Bracket with 4x RJ45DS-1100
UB0630UB0630Universal Bracket with 4x M12 X-Coded CutoutDS-1100 Series
UB0703UB0703Universal Bracket with 2x DB9 CutoutDI-1000
UB0710UB0710Universal Bracket with 4x M12 CutoutDI-1000
UB0711UB0711Universal Bracket with 2x RJ45 CutoutDI-1000
UB0712UB0712Universal Bracket with 4x RJ45 CutoutDI-1000
UB0910UB0910Universal Bracket with 4x M12 CutoutDX-1100
UB0911UB0911Universal Bracket with 2x RJ45 CutoutDX-1100
UB0912UB0912Universal Bracket with 4x RJ45 CutoutDX-1100
UB0918UB0918Universal Bracket with DIO CutoutDX-1100
Back to category
Loading...
