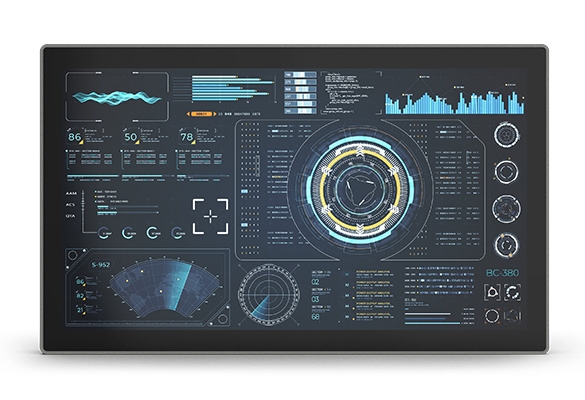

产品介绍
CV-200 / P2002 系列为高效能窄边框模块化工业平板电脑，搭载 Intel® 第 6 代 Core™ U 系列处理器，兼顾稳定运算效能与系统整合弹性。其超窄边框设计与灵活的扩充能力为主要特色，除原生提供丰富 I/O 接口外，亦支持 2× Mini PCIe 插槽，可灵活满足各种工业应用需求。
透过 Cincoze CDS（Convertible Display System）技术，CV-200/P2002 系列在未来电脑效能升级或屏幕更换上具备高度弹性。全系列支持 Full HD 显示并提供 10” – 21.5” 多尺寸选择，搭配强固工业设计，适合应用于设备机台 HMI 与生产流程可视化等多元工业场域。
Product Category >>>> Modular Panel PC & Industrial Monitor
高效能 低功耗
——
可搭载 Intel® 第 6 代 Core™ U 系列处理器，在 15W 低功耗条件下提供优异的运算效能，满足工业应用对效能与能效的双重需求。

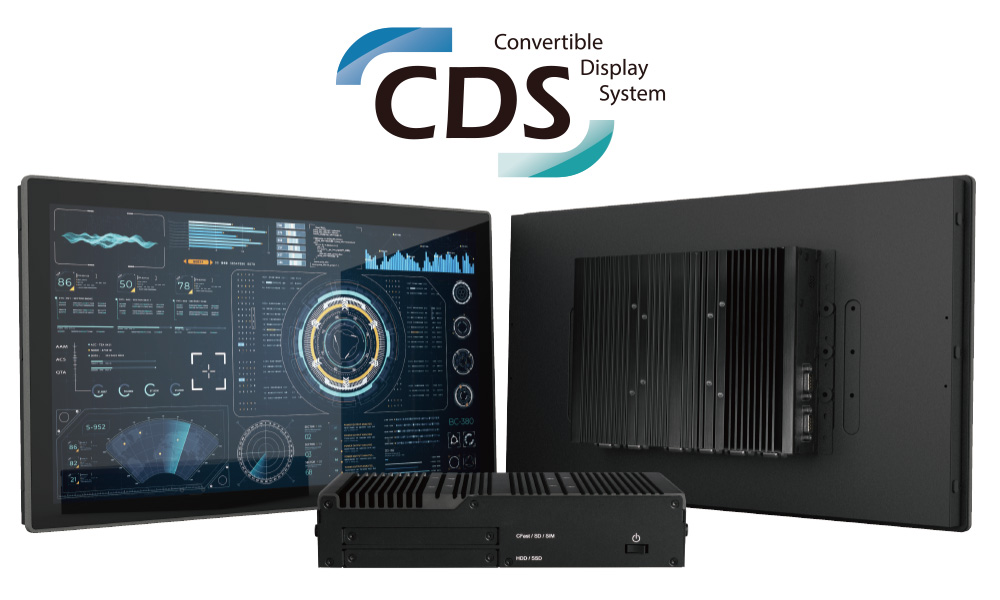

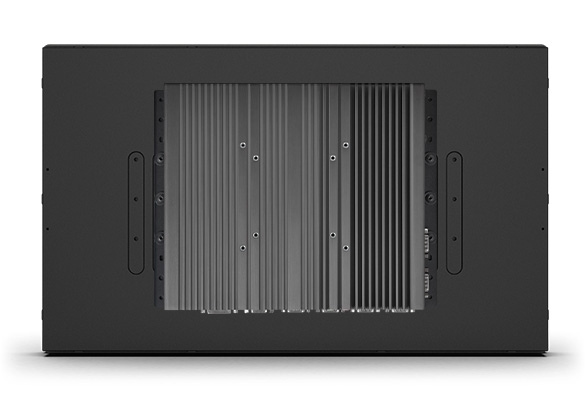

CDS 专利技术
——
通过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易维护的优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需更换单一组件即可达成，大幅节省未来升级成本。

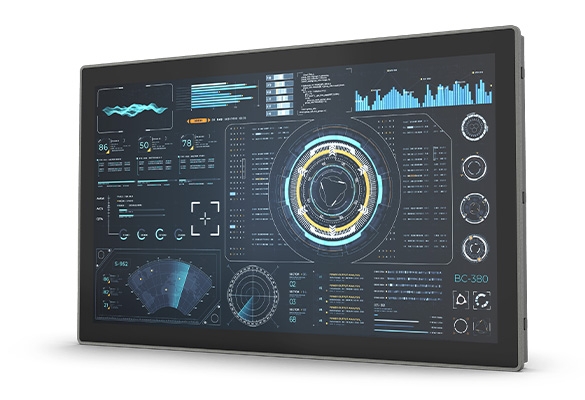

超窄边框
——
依据不同显示尺寸，边框宽度 ≤ 3 mm，可有效降低外型对设备整合的限制，特别适合柜体空间受限或重视外观整合的工业设备。
触控升级
——
全系列支持 P-Cap 投射式电容触控、防眩光（AG）涂层与湿态触控（Wet Tracking）技术，即使在潮湿环境或高亮度室内照明条件下，仍能稳定操作与清晰显示
强固、安全、更可靠
——
面对严苛的使用环境，CV-200/P2002 系列具备一系列的工业级防护， 包括宽工作温度范围、宽范围直流电源输入（9 至 48VDC）、IP66 前面板防尘/防水等，有利于现场端 HMI 或生产流程可视化等应用。
详细规格
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P2002 Series
| Model Name | P2002 | P2002E | |
|---|---|---|---|
| System | Processor | Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 520 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 | ||
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High-Definition Audio | |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A) | ||
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| CFast | 1x CFast Socket (Gen3) | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L) | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 1x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector | ||
| Other Function | Instant Reboot | Support 0.2sec Instant Reboot technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| External Fan Connector | 1x External Fan Connector, 4-pin Terminal Block | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only) | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 220 x 54mm | 254.5 x 220 x 72 mm |
| Weight Information | 2.92 kg | 3.18 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| Operating Stystem | Microsoft® Windows® | Windows®10, Windows® 8.1, Windows® 7 | |
| Linux | Linux® Kernel 4.4 | ||
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 85C | ||
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
订购信息
| Model No. | Product Description |
|---|---|
| CV-221C-R10/P2002-i5-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2002E-i5-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2002E-i5-E4-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCIe x4 expansion slot |
| CV-221C-R10/P2002E-i5-PI-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCI expansion slot |
| CV-221C-R10/P2002-i3-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2002E-i3-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2002E-i3-E4-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCIe x4 expansion slot |
| CV-221C-R10/P2002E-i3-PI-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCI expansion slot |
| CV-221C | P2002(i3/i5) | P2002E(i3/i5/E4/PI) | |
|---|---|---|---|
| CV-221C/P2002 | V | V | -- |
| CV-221C/P2002E | V | -- | V |
| CV-221C/P2002 Series Panel PC x1 | Power Terminal Block Connector (Female) x 1 |
| Panel Mounting Kit x 14 | Screw Pack x 1 |
| Fan Terminal Block Connector x 1 | Remote Power On/Off Terminal Block Connector x 1 |
| DIO Terminal Block Connector (Female) x 2 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 15 mm)(For P2002 only) |
| CFM-PoE101 | CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) (For P2002E only) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot (For P2002E only) |
| RC-PI-01 | Riser Card with 1x PCI Slot (For P2002E only) |
| UB0503 | 1x Universal Bracket with 2x DB9 Cutout (154 x 17 mm) |
| UB0504 | 1x Universal Bracket with 4x DB9 Cutout (154 x 17 mm) |
| UB0511 | 1x Universal Bracket with 2x RJ45 Cutout (154 x 17 mm) |
| UB0514 | 1x Universal Bracket with 2x USB Cutout (154 x 17 mm) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN (For P2002E only) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
