产品信息
中阶性能 & 低功耗型 (DI系列)
DI系列代表“Diamond Intelligent”，为德承Diamond 产品线中诉求“高效能，紧凑型”的产品系列。搭载低功耗Intel® Core™ i7/i5/i3﹙TDP 15W﹚U系列处理器，以其高效、紧凑的特性，适合空间有限且有高运算需求的应用场景，如工厂自动化、机器视觉、车载运算和移动监控等应用。| 产品图 | 产品型号 | CPU | I/O | Expansion |
|---|---|---|---|---|

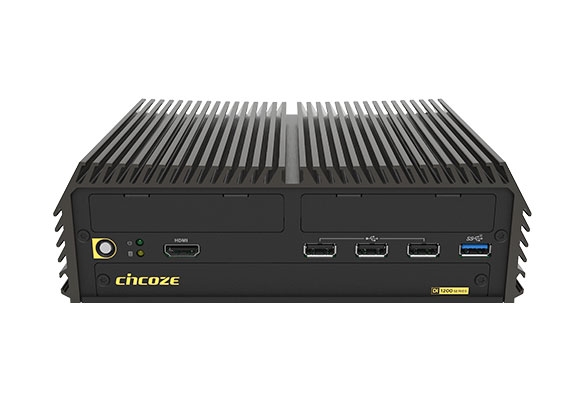

 | DI-1200 | Onboard Intel® Core™ i3-1215UE Processor Onboard Intel® Core™ i5-1245UE Processor Onboard Intel® Core™ i7-1265UE Processor | 2x 2.5 GbE LAN 1x USB 3.2 Gen2x1 (10Gbps) 2x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 1x HDMI 2x DisplayPort | 2x M.2 Sockets 2x SIM Socket 2x CMI Interface 1x CFM Interface |
 | DI-1100 | Onboard Intel® Core™ i3-8145UE Processor Onboard Intel® Core™ i5-8365UE Processor Onboard Intel® Core™ i7-8665UE Processor | 2x LAN 2x USB 3.2 Gen2x1 (10Gbps) 2x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x PS/2 1x HDMI 1x DisplayPort 1x VGA | 2x Full-size Mini-PCIe Sockets 2x SIM Socket 2x CMI Interface 1x CFM Interface |

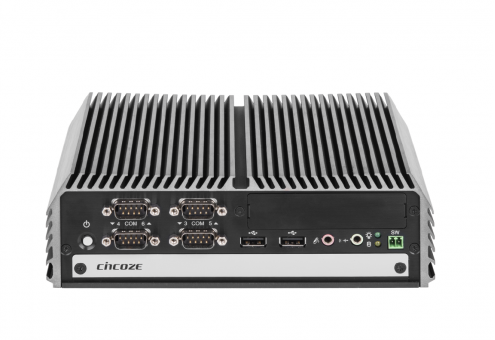

 | DI-1000 | Onboard Intel® Core™ i3-6100U Processor Onboard Intel® Core™ i5-6300U Processor Onboard Intel® Core™ i7-6600U Processor | 1x DVI-I 1x DisplayPort 2x GbE LAN 6x COM 4x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 1x PS/2 8x Optical Isolated DIO | 1x CFM Interface 1x CMI Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
