产品信息

CMI 模块
CMI模块(Combined Multiple I/O)专为灵活的I/O扩展能力而设计,用户可根据需要扩展各种I/O接口。CMI模块包括LAN (RJ45/M12)、PoE (RJ45/M12)、COM、DIO、LPT/PS2、DisplayPort、DVI和VGA。产品图 | 产品型号 | Category | Description | Connector | Compatible Model |
---|---|---|---|---|---|
![]() | CMI-LAN01 | LAN | CMI Module with 4x Intel GbE LAN, RJ45 Port | 4x RJ45 | DS-1400 Series DS-1300 Series DS-1200 Series DS-1100 Series DI-1000 Series DI-1100 Series DX-1200 DX-1100 DX-1000 GM-1000 GP-3000 |
![]() | CMI-M12LAN01 | LAN | CMI Module with M12 Connector, 4x Intel GbE LAN | 4x M12 | DS-1400 Series DS-1300 Series DS-1200 Series DS-1100 Series DI-1100 Series DI-1000 Series DX-1200 DX-1100 DX-1000 GM-1000 GP-3000 |
![]() | CMI-XM12LAN01 | LAN | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports | 4x M12 | DS-1400 Series DS-1300 Series DS-1200 Series DS-1100 Series DI-1100 Series DX-1200 DX-1100 DX-1000 GM-1000 GP-3000 |
![]() | CMI-10GLAN01 | LAN | CMI Module with 2x Intel 10GbE LAN, RJ45 Port | 2x RJ45 | GM-1000 |
![]() | CMI-10GLAN02 | LAN | CMI Module with 2x Intel 10GbE LAN, RJ45 Port | 2x RJ45 | GP-3000 |
![]() | CMI-10GLAN03 | LAN | CMI Module with 2x Intel 10GbE LAN, RJ45 Port | 2x RJ45 | DS-1400 Series DS-1300 Series |
![]() | CMI-10GLAN04 | LAN | CMI Module with 2x Intel 10GbE LAN, RJ45 Port | 2x RJ45 | DI-1100 |
NEW ![]() | CMI-10GLAN05 | LAN | CMI Module with 2x Intel 10GbE LAN, RJ45 Port | 2x RJ45 | DX-1200 |
![]() | CMI-CD100 | I/O | CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) | 4x DB9 | DS-1100 Series |
![]() | CMI-ICD100 | I/O | CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) | 4x DB9 | DS-1100 Series |
![]() | CMI-DIO01 | I/O | CMI Module with 16x Optical Isolated DIO (8 in/8 out) | 16x Optical Isolated DIO (8DI, 8DO) | DX-1200 DX-1100 DX-1000 GM-1000 |
![]() | CMI-DIO02 | I/O | CMI Module with 16DIO (8in 8out) | 16x Optical Isolated DIO (8DI, 8DO) | DS-1400 Series DS-1300 Series DS-1200 Series |
![]() | CMI-DIO03 | I/O | CMI Module with 8x Optical Isolated DIO (4 in/4 out) | 8x Optical Isolated DIO (4DI, 4DO) | DC-1200 |
![]() | CMI-DIO04 | I/O | CMI Module with 16x Optical Isolated DIO (8 in/8 out) | 16x Optical Isolated DIO (8DI, 8DO) | GP-3000 |
![]() | CMI-DIO05 | I/O | CMI Module with 16x Optical Isolated DIO (8 in/8 out) | 16x Optical Isolated DIO (8DI, 8DO) | DI-1100 |
![]() | CMI-DIO06 | I/O | CMI Module with 16x Optical Isolated DIO (8 in / 8 out) | 16x Optical Isolated DIO (8DI, 8DO) | DV-1000 |
![]() | CMI-DIO100 | I/O | CMI Module with 8x Optical Isolated DIO (4 in/4 out) | 8x Optical Isolated DIO (4DI, 4DO) | DA-1100 DA-1000 |

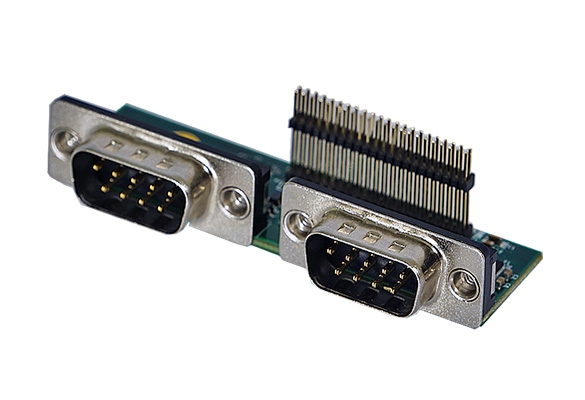

![]() | CMI-COM01 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DX-1200 DX-1100 DX-1000 GM-1000 |
![]() | CMI-COM02 | I/O | CMI Module with 4 x RS232/422/485 (Support 5V/12V) | 4x DB9 | DS-1400 Series DS-1300 Series DS-1200 Series |
![]() | CMI-COM03 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DC-1200 |
![]() | CMI-COM04 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | GP-3000 |
![]() | CMI-COM05 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DI-1100 |
![]() | CMI-COM06 | I/O | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) | 2x DB9 | DV-1000 |
![]() | CMI-ICOM01 | I/O | CMI Module with 4 x isolated RS232 | 4x DB9 | DS-1400 Series DS-1300 Series DS-1200 Series |
![]() | CMI-COM102 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DA-1100 DA-1000 |
![]() | CMI-LPPS102 | I/O | CMI Module with 1x LPT Port, 1x PS/2 | 1x Parallel and 1x PS/2 | DA-1100 DA-1000 |

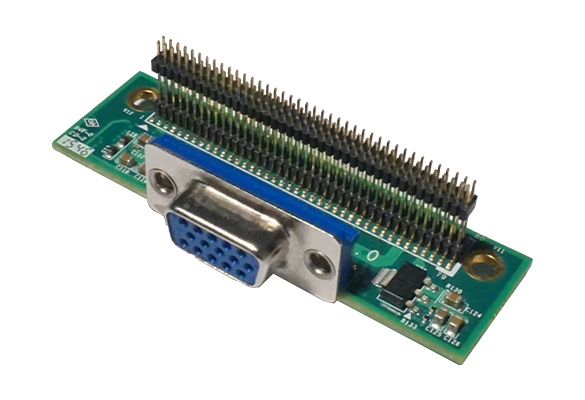

![]() | CMI-VGA101 | Display | CMI Module with 1x VGA Port | 1x VGA | DA-1100 DA-1000 |
![]() | CMI-VGA01 | Display | CMI Module with 1x VGA Port | 1x VGA | DC-1200 |
![]() | CMI-HD01 | Display | CMI Module with 1x HDMI Port | 1x HDMI | DA-1100 DA-1000 |
![]() | CMI-HD02 | Display | CMI Module with 1x HDMI Port | 1x HDMI | DC-1200 |
![]() | CMI-HD03 | Display | CMI Module with 1x HDMI Port | 1x HDMI | DV-1000 |
![]() | CMI-DP101 | Display | CMI Module with 1x DisplayPort | 1x DisplayPort | DA-1100 DA-1000 |
![]() | CMI-DP01 | Display | CMI Module with 1x DisplayPort | 1x DisplayPort | DV-1000 |

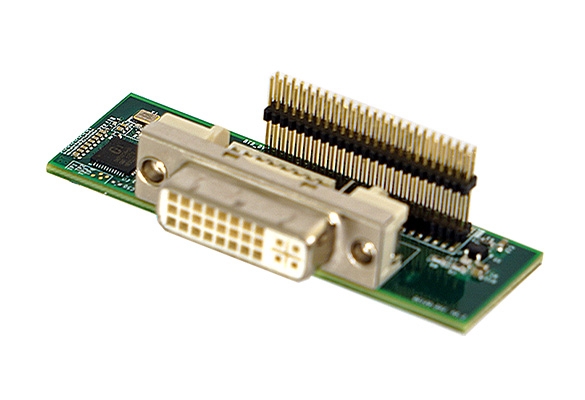

![]() | CMI-DVI101 | Display | CMI Module with 1x DVI-D Connector | 1x DVI-D | DA-1100 DA-1000 |
![]() | CMI-DVI01 | Display | CMI Module with 1x DVI-D Connector | 1x DVI-D | DC-1200 |
