高阶性能 & PCIe 扩充型 (DS系列)

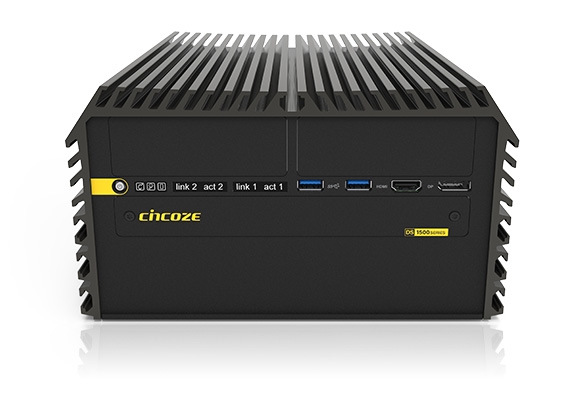

Cincoze DS 系列高性能无风扇嵌入式电脑，采用插槽式 Intel® Xeon® 或 Core™ CPU，支持容量高达 64GB 的内存，满足各种高端计算需求。DS 系列最多支持 2 个 PCI/PCIe 扩展插槽，可通过不同的接口组合扩展各种应用扩展卡。DS 系列坚固耐用的功能包括可适应 -40~70°C 宽温工作环境，宽压输入 (9V 至 48V)，高耐冲击和振动，和高标准的工业保护。| 产品图 | 产品型号 | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|
 | DS-1400 Series | Intel® 14/13/12th Gen. Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP) | Intel® R680E | 2x LAN 2x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA | 3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface Up to 2 x PCI/PCIe slot |
 | DS-1300 Series | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E | 2x LAN 2x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA | 3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface Up to 2 x PCI/PCIe slot |
 | DS-1200 Series | 9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron | Intel® Q370 | 2x LAN 2x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x DVI-I 2x DisplayPort | 1x CFM Interface 4x CMI Interfaces 3x Full-size Mini-PCIe Sockets 5x Universal I/O Brackets 2x SIM Sockets 2x Antenna Holes Up to 2x PCI/PCIe slot |
 | DS-1100 Series | 7/6th Gen. Intel® Core i3 / i5 / i7 | Intel® Q170 | 2x LAN 6x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x DVI-I 2x DisplayPort | 1x CFM Interface 2x CMI Interfaces 3x Full-size Mini-PCIe Sockets 3x Universal I/O Brackets 1x SIM Socket 2x Antenna Holes Up to 2x PCI/PCIe slot |
