工业触控显示器 (CV-100/M1000系列)

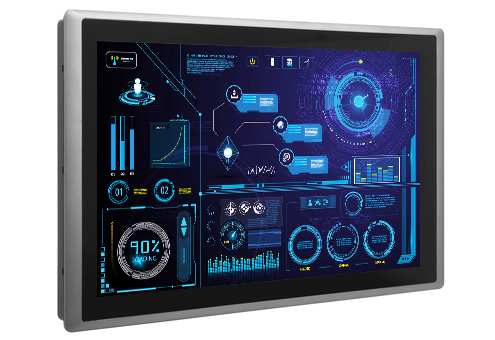

德承 CV-100/M1000 系列是一体化的工业触控显示器，它集成了高分辨率的 TFT-LCD 屏幕、5 线式电阻或电容式触摸屏。可选尺寸从 8 寸到 24 寸与 4:3 和 16:9 的显示器分辨率。Mylar 膜、背盖、前方铝板的颜色与商标皆可以定制，可适应客户不同的设备或操作环境，并提供相同的产品外观与使用感受。
| Product | Model Name | LCD Size | Touch Type | Resolution / Brightness | I/O |
|---|---|---|---|---|---|
 | CV-108 / M1101 Series | 8.4" TFT | Resistive / Capacitive | 800x600 (SVGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-110 / M1101 Series | 10.4" TFT | Resistive / Capacitive | 800x600 (SVGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-110H / M1101 Series | 10.4" TFT | Resistive / Capacitive | 1024x768 (XGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-112H / M1101 Series | 12.1" TFT | Resistive / Capacitive | 1024x768 (XGA) / 500 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-115 / M1101 Series | 15" TFT | Resistive / Capacitive | 1024x768 (XGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-117 / M1101 Series | 17" TFT | Resistive / Capacitive / without Touch | 1280x1024 (SXGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-119 / M1101 Series | 19" TFT | Resistive / Capacitive / without Touch | 1280x1024 (SXGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-W115 / M1101 Series | 15.6" TFT | Resistive / Capacitive | 1366x768 (WXGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-W121 / M1101 Series | 21.5"TFT-LCD | Resistive / Capacitive / without Touch | 1920x1080 (Full HD) / 300 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
 | CV-W124 / M1101 Series | 24"TFT-LCD | Resistive / Capacitive / without Touch | 1920x1080 (Full HD) / 300 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 1x COM 1x Audio |
