产品介绍

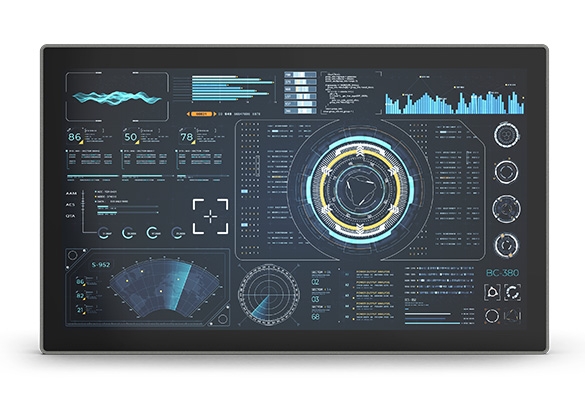

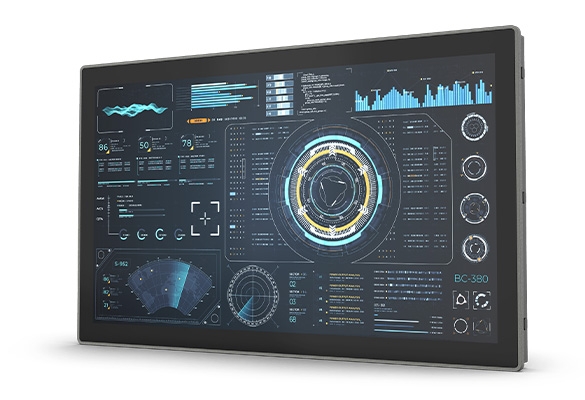

CV-200/P1101 系列为入门级窄边框模块化工业平板电脑，搭载 Intel® Atom®/Pentium® 处理器，支持三个独立显示器（VGA 与 DisplayPort），并提供丰富 I/O 接口。系统配备 2× Mini PCIe 与 1× SIM 卡插槽，可支持多种无线通信应用。全系列支持 Full HD 显示并提供 10” – 21.5” 多尺寸选择，搭配工业等级强固设计，适合严苛工业环境应用。
Product Category >>>> Modular Panel PC & Industrial Monitor
轻量级工业应用
——
搭载 Intel® Atom®/Pentium® 处理器，满足基础 HMI 与控制应用的效能需求。
CDS 专利技术
——

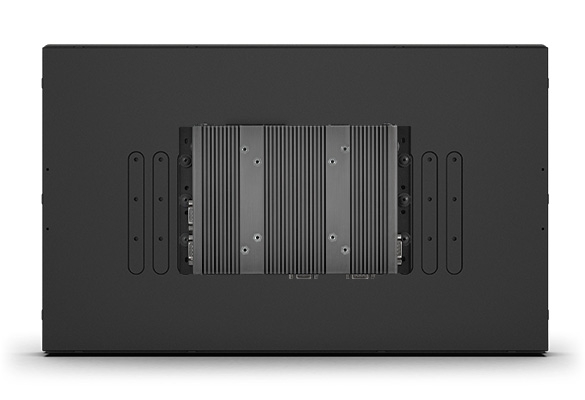

通过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易维护的优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需更换单一组件即可达成，大幅节省未来升级成本。
超窄边框
——
依据不同显示尺寸，边框宽度 ≤ 3 mm，可有效降低外型对设备整合的限制，特别适合柜体空间受限或重视外观整合的工业设备。
触控升级
——
全系列支持 P-Cap 投射式电容触控、防眩光（AG）涂层与湿态触控（Wet Tracking）技术，即使在潮湿环境或高亮度室内照明条件下，仍能稳定操作与清晰显示
强固、安全、更可靠
——
面对严苛的使用环境，CV-200/P1101 系列具备一系列的工业级防护， 包括宽工作温度范围、宽范围直流电源输入（9 至 48VDC）、IP66 前面板防尘/防水等，有利于现场端 HMI 或生产流程可视化等应用。
详细规格
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P1101
| Model Name | P1101 | |
|---|---|---|
| System | Processor | Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | • 1x DDR3L 1333/1600/1866 MHz SO-DIMM Socket, with up to 1600 MHz operation • Supports Un-buffered and Non-ECC Type, Up to 8GB | |
| Graphics | Graphics Engine | Integrated Intel® HD Graphics 505 |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| VGA | 1x VGA (1920 x 1200 @60Hz) | |
| DP | 1x DisplayPort (4K x 2K @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| USB | 4x USB 3.2 Gen1 (Type A) | |
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| DIO | 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” HDD Drive Bay (SATA 3.0) |
| SIM Socket | 1 x SIM Socket | |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Sockets |
| CFM (Control Function Module) Interface | Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function | |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| Antenna Holes | 4x Antenna Holes | |
| Other Function | Instant Reboot | Support 0.2sec |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Internal Speaker | AMP 2W + 2W | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Reset Button | 1x Reset Button | |
| Power | Power Switch | 1x Power Switch |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | |
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.49kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Physical Design | Fanless Design Jumper-less Design | |
| Mounting | Wall / VESA / CDS / DIN Mounting | |
| Reliability & Protection | Reverse Power Input | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | Time: 294,617 hours | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) |
| Storage Temperature | -40°C to 85°C | |
| Relative humidity | 95% RH @ 75˚C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • LVD IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CV-221C-R10/P1101-E50-R11 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom® E3950 Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P1101-N42-R11 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Pentium® N4200 Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C | P1101-E50 | P1101-N42 | |
|---|---|---|---|
| CV-221C/P1101-E50 | V | V | -- |
| CV-221C/P1101-N42 | V | -- | V |
| CV-221C/P1101 Series Panel PC x1 | Power Terminal Block Connector (Female) x 1 |
| Panel Mounting Kit x 14 | Screw Pack x 1 |
| Thermal Pad (for CPU Thermal Block) x 1 | Remote Power On/Off Terminal Block Connector x 1 |
| DIO Terminal Block Connector (Female) x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
