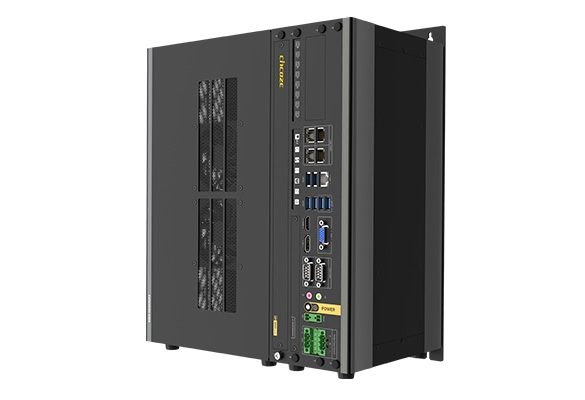

GP-3000

双全长GPU电脑
产品特点
  • 支持第9/8代Intel® Xeon®和Core™处理器(35W / 65W / 80W)
  • 支持2 x DDR4 SO-DIMM插槽,支持ECC及非ECC内存,可达2666MHz,128GB
  • 支持4 x 2.5英寸机械硬盘/固态硬盘(高达15mm),具有热插拔功能
  • 1 x M.2 M Key插槽(NVMe SSD),1 x M.2 E Key插槽(CNVi)
  • 支持2个前置SIM卡插槽
  • 支持CMI技术,可用于各种I/O扩展
  • 支持CFM技术,可扩展智能点火控制和PoE功能
  • 多种安装方式(壁挂/桌上/支架/19”机架安装)
  • 军工标准防冲击和振动认证
产品介绍

GP-3000 是一款可安装两张全长 GPU 显卡的高性能 GPU 电脑,系统总功耗高达 720W,可同时运行两张功耗 250W 的全长显卡,搭载 Intel® 工作站级的处理器,提供优越性能、快速数据存储、高速 I/O 连接,结合高质量的机械设计和工业级的强固设计 (符合 MIL-STD-810G 美军设备检验标准规范),为人工智能的边缘运算带来了新的可能性和创新的变革。

Machine Vision

机器视觉

  • 视觉引导机器人
  • 自动光学检测
  • 人工智能
In-vehicle Computing

车载

  • 自动驾驶
  • 路况分析甄别
  • 驾驶情况监测
Intelligent Transportation

智能交通

  • 交通监控
  • 环境监测
  • 物件筛选
Security and Surveillance

安全与监测

  • 目标跟踪和检测
  • 行为预测
  • 视频分析

Cutting-Edge Performance

优越的
运算效能

——

GP-3000 搭载第 9 代 Intel® Xeon® / Core™ 处理器,第 9 代 Intel® 处理器比上一代快 34%,并支持 2 组 DDR4-2666 ECC/non-ECC SO-DIMM,内存容量高达 128GB,还可扩展至多两张 250W 的高阶 GPU 显卡。GP-3000 为人工智能、机器学习、机器视觉和大数据分析提供了惊人的性能,是当今最强大的工业人工智能和机器视觉计算机之一。




可扩展和升级的
GPU 扩展盒patent

——

专属的 GEB (GPU 扩展盒) 可弹性灵活的扩展至多两张且长度为 328mm 的高阶 GPU 全长卡,并内建多个 PCIe 插槽,可搭配各类高速 I/O 卡或影像撷取卡,以实践各种不同的应用。对于未来的升级性,无论是搭载更高阶的 GPU 显卡或是扩展卡数量的向上叠加,也只需透过换置 GEB (GPU 卡扩展盒) 即可轻松实现,是市面上支持多张 GPU 全长卡且具备弹性扩展的理想机种。

Scalability and Upgradability With GEB

Total Power Budget Up to 720W


720W 的
系统总功耗

——

总功耗为 720W,支持 9V~48V 的宽压直流电源输入,适用于高端 GPU 的运算。可为其专属的 GEB(GPU 扩展盒) 提供高达500W 的功率,安装两张 250W 的高阶 GPU 显卡也能运行顺畅无阻。




增强散热能力的
智能冷却设计

——

为了解决高功耗和散热的难点,GP-3000 在铝挤型结构的两侧和 GEB (GPU 扩展盒) 机箱的四周,均有设计独立的外部智能风扇组件,在 CPU 和 GPU 满载的情况下,仍可在极端条件下有效地散热。

Intelligent Cooling Design for Enhanced Thermal Support

Multiple Native and Expandable I/O


丰富的 I/O 接口及
定制化的扩展功能

——

搭配德承专属的 CMI/CFM 模块,可额外增加的 I/O 接口或其他扩展的功能,如 8x GbE LAN/POE、6x USB 3.2 和 2x 10 GbE LAN。支持 1 个 M.2 M key 的高速 NVMe SSD 存储,在前面板的维护区还有 4 个可支持热插拔的 2.5” HDD/SSD 硬盘支架,可满足机器视觉应用对于大容量储存的要求,也提升了现场端硬盘抽取与更换的便利性。


强固的设计
使运行更稳定可靠

——

通过美军设备检验标准 (MIL-STD-810G) 的认证,车载应用的 E-mark 认证和铁路车辆环境的 EN50155 (仅 EN 50121-3-2) 轨道交通认证,采用 9-48V 直流宽压输出,-40°C 到 70°C 的宽温设计,支持多种安装方式 (标准安装/壁挂安装/19寸机架式安装),可承受极端的冷热温度,冲击和振动,以及高电磁辐射,让运用范围更加广泛,足以涵盖轨道交通、车载及其他特殊严苛环境的多种应用。

Robust Design Enabling Reliable Operation

视频

详细规格
Model NameGP-3000
SystemProcessor• 9th Generation Intel Coffee Lake-R S Series CPU:
- Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W
- Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
- Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
- Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
- Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
- Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
- Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
- Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel Coffee Lake S Series CPU:
- Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W
- Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W
- Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W
- Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W
- Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W
- Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W
- Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W
- Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W
- Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W
- Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W
- Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W
ChipsetIntel C246
Memory• 2x DDR4-2666/2400 MHz SO-DIMM Sockets
• Supports ECC / non-ECC Type Up to 128 GB
   * Xeon/i7/i5: Up to DDR4 2666MHz
   * i3/Pentium/Celeron: Up to DDR4 2400MHz
Graphics• Integrated Intel® UHD Graphics
  (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
• Supports Triple Independent Display (VGA/DisplayPort/HDMI)
AudioRealtek® ALC888, High Definition Audio
BIOSAMI BIOS
I/O InterfaceHDMI1x HDMI Connector (4096 x 2160 @ 30Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz)
VGA1x VGA Connector (1920 x 1200 @30Hz )
LAN5x GbE LAN, RJ45
- GbE1: Intel® I219-LM
- GbE2: Intel® I210
- GbE3: Intel® I210
- GbE4: Intel® I210
- GbE5: Intel® I210
Serial Port2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB2x 10Gbps USB 3.2 Gen2, Type A
4x 5Gbps USB 3.2 Gen1, Type A
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Reset1x Remote Reset, 2-pin Terminal Block
AT/ATX Switch1x AT/ATX Mode Switch
Rest Button1x Rest Button
Clear CMOS Switch1x Clear CMOS Switch
StorageSSD/HDD4x 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0),
Supports Up to 15mm in Height
M.21x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
RAIDSupports RAID 0 / 1 / 5 / 10
ExpansionPCIeOptional GPU Expansion Box
- 1 x PCIe x 4 + 1 x PCIe x 16
- 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4
Mini PCI Express2x Full-size Mini-PCIe Socket
M.21x M.2 Key E 2230 Socket, Supports Intel CNVi Module
1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD
Universal Bracket1x Universal Bracket
SIM Socket2x SIM Socket
Antenna Holes7x Antenna Holes
Cincoze Modular TechnologyCMI Interface1x High Speed CMI (Combined Multiple I/O) Interface
1x Low Speed CMI (Combined Multiple I/O) Interface
CMI ModuleOptional Modules:
- 4x GbE LAN, RJ45
- 4x GbE LAN, M12 A-Coded
- 2x 10GbE LAN, RJ45
- 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
- 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block
CFM Interface1x CFM(Control Function Module) IGN Interface
1x CFM(Control Function Module) PoE Interface
CFM ModuleOptional Module
• 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V
• 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W
MEC ModuleOptional Modules:
• 2x 5Gbps USB 3.2 Gen1, Type A
• 2x GbE LAN, RJ45
OtherFan2x Fan Kits ( Air-flow isolated from the electronics )
Instant RebootSupport 0.2sec Instant Reboot Technology
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9-48 VDC, Single Power Source
Total Power Budget720W (with GEB-3601-R10)
Connector2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
- Dual power connect must be used at the same time due to 15A current limitation at each power connector.
Power SupplyOptional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply
PhysicalDimension ( W x D x H )105 x 195 x 370 mm
Weight Information8kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount
Unibody DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection30A
ESD Protection+/-8kV(Air), +/-4kV(Contact)
Surge2 kV
Operating SystemWindowsWindows® 10
LinuxSupport by project
EnvironmentOperating Temperature35W CPU: -40°C to 70°C
65W CPU: -40°C to 60°C
80W CPU: -40°C to 50°C
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
* 100% CPU and without thermal throttling
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 70°C (Non-condensing)
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMCCE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark
SafetyLVD (EN62368-1)
MTBF441,283 hr
Fire ProtectionEN 45545-2
订购信息
Available Models
Model No.Product Description
GP-3000-R109th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

Package Checklist
√ Wall Mount Bracket√ Rubber Foot Kit x 1
√ Desktop Mount Kit x 1√ Power Terminal Block Connector x 2
√ CPU Heatsink and Thermal Pad Kit√ Remote Function Terminal Block Connector x 2
√ Screw Pack x4√ Utility DVD Driver x1

Optional GPU Expansion Box
Model No.Description
GEB-3301-R10GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots for GP-3000 Series
GEB-3601-R10GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots for GP-3000 Series

Optional Accessories - I/O Module
Model No.Description
CMI-LAN01-R12/UB1412CMI Module with 4x Intel I210 GbE LAN, RJ45 Port /
1x Universal Bracket with 4x RJ45 Cutout for GP-3000 Series
CMI-M12LAN01-R12/UB1410CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN /
1x Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-XM12LAN01-R10/UB1410CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports /
Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-10GLAN02-R10/UB1428CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port /
1x Universal Bracket with 2x RJ45 Cutout for GP-3000 Series
CMI-COM04-R10/UB1403CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) /
1x Universal Bracket with 2x DB9 Cutout for GP-3000 Series
CMI-DIO04-R11/UB1418CMI Module with 16DIO (8in 8out) /
1x Universal Bracket with DIO Cutout for GP-3000 Series
MEC-USB-M102-15/UB1414Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable /
1x Universal Bracket with 2x USB Cutout for GP-3000 Series

Optional Accessories - Function Module
Model No.Description
CFM-PoE07-R10CFM Module with PoE Function, Individual Port 25.5W
(Enable PoE function for CMI-LAN01-R12, CMI-M12LAN01-R12, CMI-XM12LAN01-R10)
CFM-PoE01CFM Module with PoE Function, Individual Port 25.5W
(Enable PoE function for onboard LAN 2 to LAN 5)
CFM-IGN03-R10CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Mounting Kit
Model No.Description
RM01-R1019" Rack Mount Kit for GP-3000
RM02-R1019" Rack Mount Kit for GP-3000/GEB-33 Series
RM03-R1019" Rack Mount Kit for GP-3000/GEB-36 Series

Optional Power Supply / Power Cord / Power Cable
Model No.Description
SDR-480-24DIN Rail Power Supply 480W 24V, SDR-480-24
HEP-1000-24Power Supply 1000W 24V, HEP-1000-24
US Power Cord1.8M US Power Cord, Stripped and Tinned End with Tube
EU Power Cord1.8M EU Power Cord, Stripped and Tinned End with Tube
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
