产品介绍

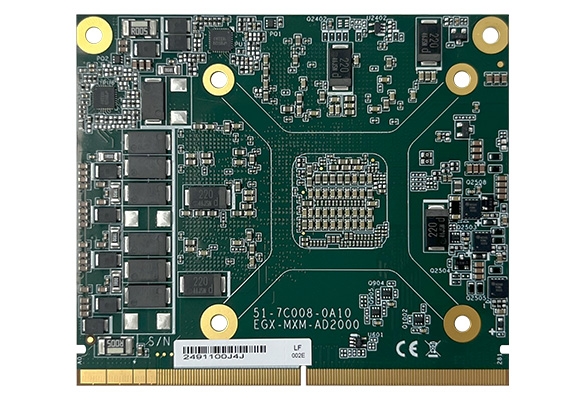

MXM-AD2000 是一款采用 NVIDIA RTX™ GPU 的嵌入式 MXM GPU 模组，基于 Ada Lovelace 架构，使用 MXM 3.1 Type A 规格。它具备 3,072 个 CUDA® 核心、24 个 RT 核心与 96 个 Tensor 核心，搭配 8 GB GDDR6 内存与 128 位总线。其 FP32 峰值运算性能约为 14.5 TFLOPS，非常适合在紧凑的嵌入式系统中用于高性能边缘计算、机器视觉以及人工智能加速。
详细规格
| GPU | NVIDIA RTX™ 2000 ADA AD107-975 GPU |
|---|---|
| Memory | 8GB GDDR6 memory, 128-bit (Bandwidth: 256 GB/s) |
| CUDA Cores | 3072 CUDA cores, 14.5 TFLOPS peak FP32 performance |
| Tensor Cores | 96 Tensor Cores |
| RT Cores | 24 RT Cores |
| Compute API | CUDA® Toolkit 8.0 and above, CUDA® Compute version 8 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12.1, OpenGL® 4.6 |
| Display Outputs | 3x DisplayPort 1.4a digital video outputs, 4K at 120Hz or 8K at 60Hz with 10-bit color depth |
| Interface | MXM 3.1, PCI Express Gen4 x8 support |
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type A |
| Power Consumption | 60W |
| OS Support | Windows 11, Windows 10 & Linux support by project |
订购信息
| Model No. | Description |
|---|---|
| MXM-AD2000-R10 | NVIDIA Embedded RTX AD2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| NVIDIA RTX™ Embedded AD2000 GPU Card x 1 | GPU Heatsink x 1 |
| GPU Thermal Pad Kit x 1 | Screw Pack x 1 |
| Model No. | Description |
|---|---|
| MXM-HSKA-02 | MXM Type A Heatsink Kit for MXM-A1000, MXM-A2000, and MXM-AD2000 |
* The MXM module kit includes a heat sink and thermal pads. The MXM Heat Sink Kit is intended for cases where an additional standalone heat sink and thermal pads are required.
