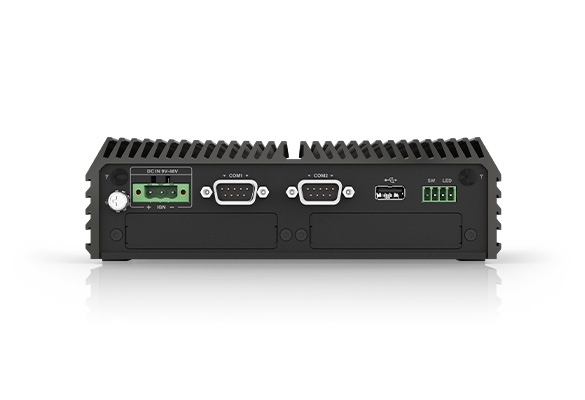

DC-1300

Intel® Alder Lake-N 系列处理器 入门性能、紧凑型强固嵌入式电脑
产品特点
  • 内建 Intel® Alder Lake-N 处理器 N97 和 Core™ i3-N305 处理器
  • 1 个 DDR5 SO-DIMM 插槽，支持最高 4800MHz 16GB 内存
  • 1 个 M.2 Key B Type 3052/3042 插槽，用于 5G 模组扩展
  • 1 个 M.2 Key B Type 2242 插槽，用于 I/O 模组扩展
  • 支持 CMI 技术，用于选配 I/O 模组扩展
  • 支持 CFM 技术，用于电源点火感应功能
产品认证
  • EN 61000-6-2
  • EN 61000-6-4
  • MIL-STD-810H
加入咨询清单 规格表
产品介绍
DC-1300

DC-1300 是 DIAMOND 产品线中专为基础工业应用所打造的入门产品，可搭载 Intel® Alder Lake-N 平台 Core™ i3 / N97 处理器，在紧凑设计中将扩充弹性发挥到极致，为安装空间受限的工业自动化应用提供强固且可靠的解决方案。



4.5X 效能跃升

——

可搭载 Alder Lake-N 平台的 Intel® Core™ i3-N305 处理器，运算效能较前代机种提升达 4.5 倍。除了配备一个 DDR5 内存插槽，并支援多种存储选项 (2.5" HDD/SSD、Half-Slim SSD 及 M.2 SSD 等)，可灵活满足各种应用需求。

4.5X 效能跃升
紧凑设计 灵活安装


紧凑设计 灵活安装

——

DC-1300 体积紧凑，仅 185 x 131 x 56.5 mm，适合安装在空间受限的环境，并支援多种安装方式，包括壁挂（Wall Mount）、侧挂（Side Mount）及 DIN-Rail 安裝。



完整的 无线传输方案

——

提供种类齐全的无线传输选项，包括 GSM、GNSS 和 Wi-Fi，可透过内建 SIM 卡插槽、M.2 Key B 插槽，或透过转接卡将 M.2 Key B 转换为 Key E 来实现。



完整的无线传输方案
丰富的扩充性


丰富的 扩充性

——

除了经由专有 CMI/CFM 模组灵活扩充 COM、DIO、显示接口与 IGN 功能外，全新推出的可堆叠扩充盒 (SEB, Stackable Expansion Box) 利用 DC-1300 内建的双 M.2 B-Key 插槽，支援市售的 I/O、CANbus 和 Fieldbus 模组，进一步拓展应用场景适应性。



国际 认证

——

DC-1300 采用工业级防护设计，支援宽温 (-40 至 70°C) 及宽压 (9 - 48 VDC)，并通过工业环境EMC标准 (IEC 61000-6-2/61000-6-4)、军规耐冲击震动标准 (MIL-STD-810H)，确保在各式应用场景的稳定运行。

国际认证
相关报导
德承推出全新紧凑型工业电脑（DC-1300 系列），助力智慧制造
2025-01-23
德承推出全新紧凑型工业电脑（DC-1300 系列），助力智慧制造
详细规格
Model NameDC-1300
SystemProcessor

• Onboard Intel® Alder Lake-N Series Processor:
  - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
  - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W

Memory• 1x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 16GB
BIOS• AMI
GraphicsGraphics Engine• Integrated Intel® UHD Graphics
Maximum Display Output• Supports Two Independent Display
  (Onboard 1x DisplayPort + Optional CMI 1x Display)
DP• 1x DisplayPort Connector (4096 x 2304 @60Hz)
  * Verified maximum resolution: 3840 x 2160 @ 60Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1x Line-out, Phone Jack 3.5mm
Mic-in• 1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5GbE LAN, RJ45
  - GbE1: Intel® I225
  - GbE2: Intel® I225
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 1 x USB 3.2 Gen1x1 (5Gbps), Type A
• 1 x USB 2.0 (480Mbps), Type A
COM• 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
StorageSSD/HDD• 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
M.2 SSD• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0)
ExpansionM.2 B Key Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 (PCIe Gen 3x1), Support Add-on Card Expansion
SIM Socket• 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional Display or I/O Module Expansion
• 1x CMI Interface for optional I/O Module Expansion
CFM (Control Function Module) Interface• 1x CFM Interface for optional IGN Module Expansion
Other FunctionClear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Status LED Indicator• Power LED, Storage LED, IGN LED
Antenna Holes• 2x Antenna Holes
PowerPower Button• 1x ATX Power On/Off Button
Power Mode Switch• 1x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption• i3-N305 CPU: 49.4W
• N97 CPU: 35.9W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• i3-N305 CPU: 4.572 A@12V
• N97 CPU: 4.475 A@12V
Remote Power LED• 1x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 185 x 131 x 56.5 mm
Weight Information• 1.5 Kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection• 15A
MTBF• 520,224 Hours
  - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemMicrosoft® Windows®• Windows®11, Windows®10
Linux• Ubuntu Desktop 22.04 LTS
EnvironmentOperating Temperature• 12W TDP Processor: -40°C to 70°C
• 15W TDP Processor: -40°C to 60°C
  * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
  * With extended temperature peripherals; Ambient with air flow
  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 12W TDP Processor: 95% RH @ 70˚C (Non-condensing)
• 15W TDP Processor: 95% RH @ 60˚C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded ethernet cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment• EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
订购信息
Available Model
Model No.Description
DC-1300-i3-R10Intel® Core™ i3-N305 Entry Performance and Compact Rugged Embedded Computer
DC-1300-N97-R10Intel® Processor N97 Entry Performance and Compact Rugged Embedded Computer

Package Checklist
DC-1300 Embedded Computer x1Power Terminal Block Connector x1
CPU Thermal Pad  x1Remote Power On/Off  + Remote Power LED Connector x1
Screw Pack x1M.2 Key B Type 3052 to 3042 Adapter Bracket x1
Wall Mounting Kit x1 　

Optional Stackable Expansion Box
Model No.Description
SEB-DC01-R10Stackable Expansion Box with 4x Expansion Area for DC Series

Optional Modules and Accessories
Model No.Description
CMI-VGA01CMI Module with 1x VGA Port
CMI-DVI01CMI Module with 1x DVI-D Connector
CMI-HD02CMI Module with 1x HDMI Port
CMI-DP03-R10CMI Module with 1x DisplayPort
CMI-COM03CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector
CMI-DIO03CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block
CFM-IGN02CFM Module with Power Ignition Sensing Function, Select 12V/24V
MEC-LAN-2002iM.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector
MEC-LAN-2002i-SM.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃),  2x RJ45 Connector
MEC-USB-2002M.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃),  2x USB Type A Connector
MEC-USB-2002CM.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃),  2x USB Type C Connector
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) 2x isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector
MEC-CAN-2814iM.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector
UB1103Universal Bracket with 2x DB9 Cutout for CMI-COM & MEC-CAN Expansion
UB1106-R10Universal Bracket with 1x DP Cutout for CMI-DP Expansion
UB1107Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion
UB1108Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion
UB1111Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1114-R10Universal Bracket with 2x USB Type A Cutout for MEC-USB Expansion
UB1115Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion
UB1116Universal Bracket with 1x DB9 Cutout for CMI-VGA Expansion
UB1131-R10Universal Bracket with 2x Antenna Cutout
UB1133-R10Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion
AC-BE01-R10M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
SIDE03 Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount
DIN01DIN-RAIL Mount Kit, KMRH-K175
VESA-DCDC series VESA Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
