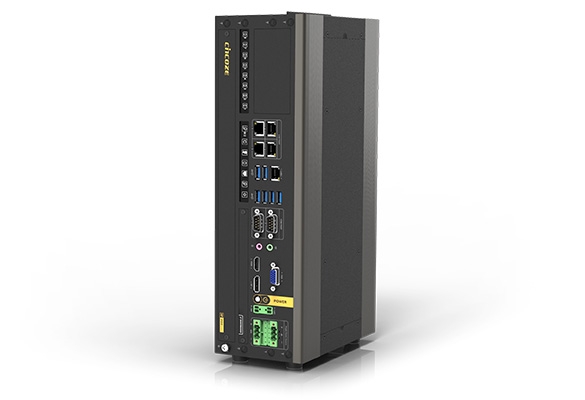

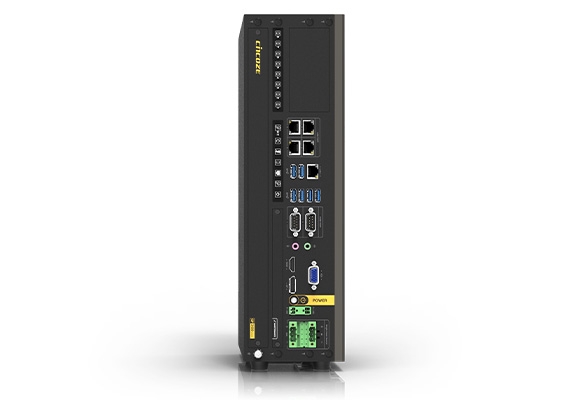

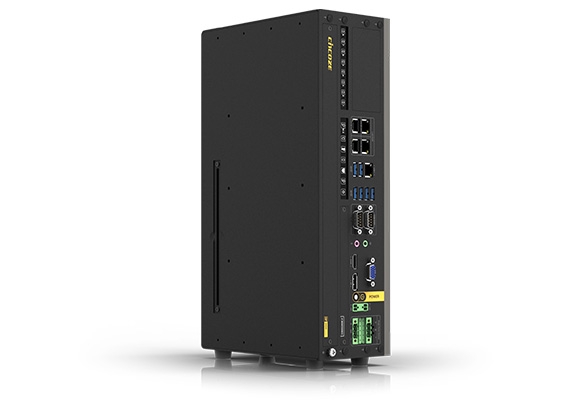

GP-3100
- Intel® 14/13/12 代 Core™ i9/i7/i5/i3 处理器（最大 65 W TDP）
- 2 个 DDR5 SO-DIMM 插槽，支持 ECC / 非 ECC 内存类型，最高 4800MHZ，64GB
- 4x 2.5GbE LAN 和选配 2x 10GbE LAN
- 1x M.2 Key E 2230 型插槽，用于无线 / Intel CNVi 模块扩展
- 1x M.2 Key B 3052/3042 型插槽，用于 5G / 存储 / 扩展卡扩展
- 1x M.2 Key B 2280 型插槽，用于扩展卡扩展
- 4 个 2.5" 可热插拔 SATA III HDD/SSD 硬盘槽（最大高度 15 mm），1x M.2 key M 用于 NVMe SSD
- 选配 CMI & CFM 模块，用于 I/O 扩展及电源点火感应功能

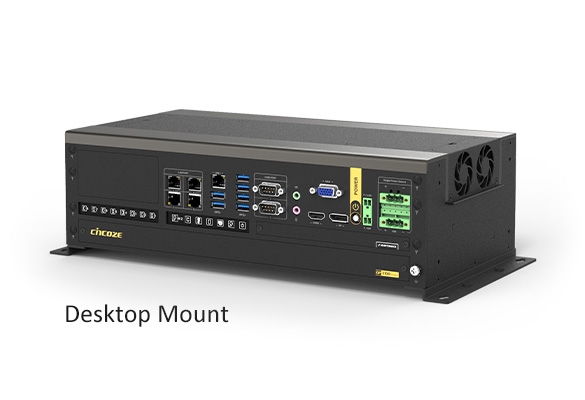

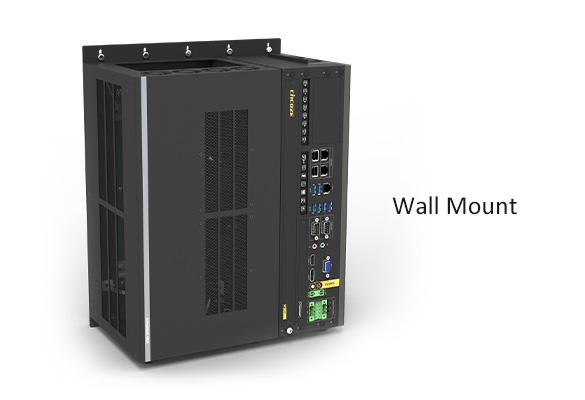

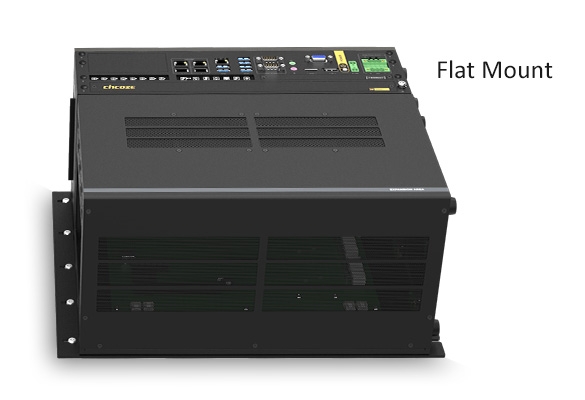

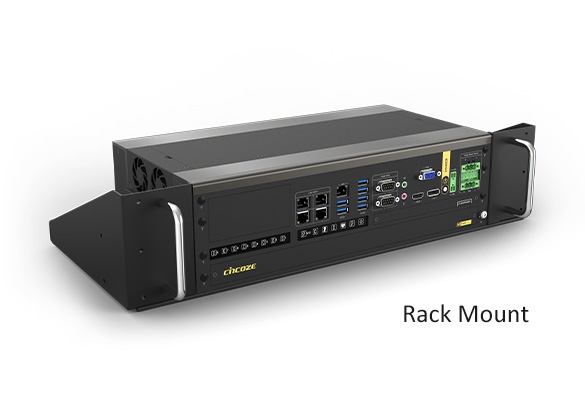

- 多样化的安装方式（塔式支架 / 桌面 / 19”机架 / 平面 / 壁挂）
- 宽广操作温度范围 -40°C 至 70°C
GP-3100 是一款专为工业 AI 和机器视觉应用打造的高性能 GPU 电脑，搭载 Intel® Core CPU，支持最多两张 250W GPU 全长卡，透过卓越效能、大量存储与高速 I/O 展现强大运算能力。具备从使用者需求出发的三大专利设计，完善了扩展、散热与稳固功能，是应对复杂且精密的 Edge AI 应用的理想选择。
CPU + GPU 展现极致效能
——
搭载第 14 代 Intel® Raptor Lake-S Refresh Core 处理器，运算效能较前代机种提升 3 倍。GP-3100 支持最多两张 250W 高阶显卡，搭配 5600MHz DDR5 内存，并支持 ECC 侦错与修正技术，满足 AI 高运算效能的需求。

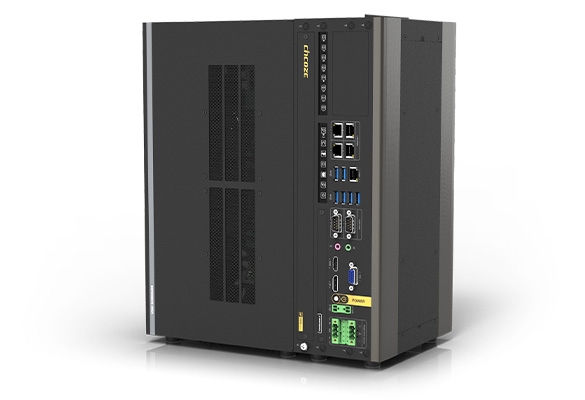

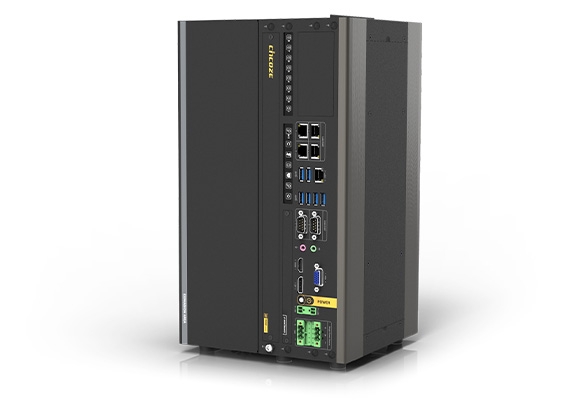

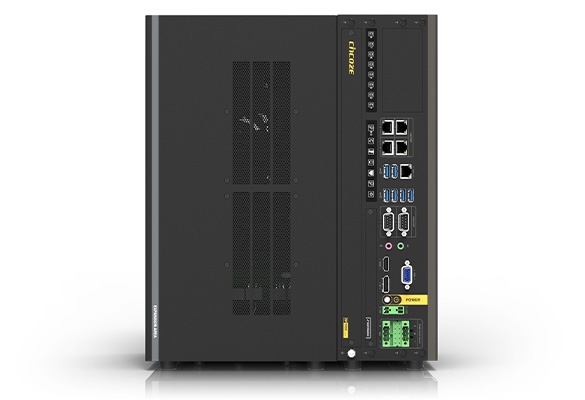

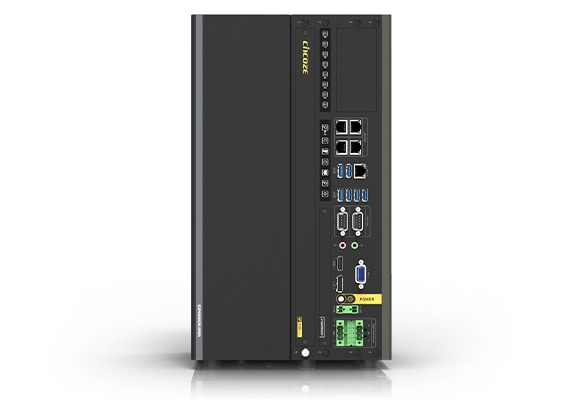

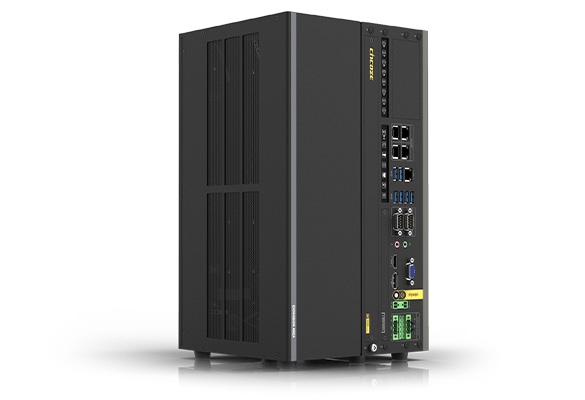

兼具扩展与升级性的 GPU 扩展盒
——
双专利的 GEB (GPU 扩展盒) 可支持最多两张 328mm 的高阶全长 GPU 卡，具备多个 PCIe 内建插槽可灵活搭配高速 I/O 或影像采集卡。专利的可调式 3D GPU 卡固定架是为高震动环境设计，可锁固各类显卡。而未来的升级弹性，只需更换 GEB 即可搭载更多高阶的显卡或增加额外的扩展卡。
专利号码：I779496、I763318全方位 散热设计
——
为了解决高功耗和散热难题，GP-3100 专利设计的散热通道，能有效排出热量并防止灰尘进入机体内部。GEB (GPU 扩展盒) 四周则配置了外部智能风扇，即便在 CPU 和 GPU 满载运行时，仍能高效散热。
专利号码：I778522
丰富的模块化设计 与扩展性
——
GP-3100 符合 AI 应用的高速传输与大量存储的需求，配置 4x 2.5GbE LAN、6x USB 3.2，并支援 4x 前抽取式 2.5" HDD/SSD 和 NVMe SSD。丰富的扩展性除了展现在在德承专属的模块化技术 (CMI & CFM) 外，还可透过 M.2 插槽增添 CAN Bus 模块等，满足各种应用需求。
国际标准 与认证
——
GP-3100 的强固设计符合多项工业级标准与认证，如 MIL-STD-810H 军规抗冲击震动标准、E-mark 车载认证、轨道交通的 EN 50155（EN 50121-3-2），确保各类应用场景的高度可靠性。
![[ 产品聚焦 ] Cincoze GPU 嵌入式工控机](data/images/202412/1733729259026865426.jpg)
| Model Name | GP-3100 | |
|---|---|---|
| System | Processor | 14th Generation Intel® Raptor Lake-S Refresh Series CPU (Coming Soon) |
| Chipset | • Intel R680E Chipset | |
| Memory | • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | • Supports Triple Independent Display | |
| HDMI | • 1x HDMI Connector (3840 x 2160@30Hz) * Verified maximum resolution: 3840x2160 @ 30Hz | |
| DP | • 1x DisplayPort Connector (4096 x 2304@60Hz) * Verified maximum DP resolution: 3840x2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 4x 2.5GbE LAN, RJ45 (Intel I225) • 1x 1GbE LAN, RJ45 (Intel I219) |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 6x USB 3.2 Gen1x1 (5Gbps), Type A | |
| Storage | SSD/HDD | • 4x 2.5” Front Accessible SATA HDD/SSD Drive Bay ( SATA3.0 ) (up to 15mm in Height) |
| M.2 SSD | • 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD • 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD | |
| RAID | • Supports RAID 0 / 1 / 5 / 10 | |
| Expansion | PCIe | • Optional GPU Expansion Box - 1 x PCIe x4 + 1 x PCIe x16 - 2 x PCIe x16 (8Lanes) + 1 x PCIe x1 + 1 x PCIe x4 |
| SIM Socket | • 2 x Front Accessible SIM Socket | |
| M.2 E Key Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2), Support Wireless/Intel CNVi Module Expansion | |
| M.2 B Key Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2280 Socket (PCIe Gen 3x1), Support Add-on Card Expansion | |
| CMI (Combined Multiple I/O) Interface | • 1 x High Speed CMI Interface for optional CMI Module Expansion • 1 x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| Other Function | FAN | • 2x Fan Kits ( Air-flow isolated from the electronics ) |
| Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna Holes | • 7x Antenna Holes | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Input Voltage | • 9 - 48VDC, Single Power Input | |
| Connector | • 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector. | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | • 35W CPU: 201.05W • 65W CPU: 306.48W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing. | |
| Physical | Dimension ( W x D x H ) | • 105 x 195 x 370 mm |
| Weight Information | • 7.7 Kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount) | |
| Physical Design | • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 30A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 432,065 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu Desktop 22.04 LTS | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor with external FAN: -40°C to 60°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Fire Protection | • EN 45545-2 | |
| Model No. | Description |
|---|---|
| GP-3100-R10 | 14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W |
| GP-3100 GPU Computer x1 | Wall Mount Bracket x1 |
| Desktop Mount Kit x1 | Rubber Foot Kit x1 |
| CPU Heatsink and Thermal Pad Kit x1 | Remote Terminal Block Connector x2 |
| Screw Pack x4 | Remote Function Terminal Block Connector x2 |
| M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| GEB-3301-R10 | GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots |
| GEB-3601-R10 | GPU Expansion Box with 2x PCIex16 (PCIex8 Signal),1x PCIe x4, and 1x PCIe x1 Slot |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 | CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port |
| CMI-M12LAN01-R12 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN02-R10 | CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port |
| CMI-DIO04-R11 | CMI Module with 16DIO (8in 8out) |
| CMI-COM04-R10 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W (Enable PoE function for onboard LAN 2 to LAN 5) |
| CFM-PoE07-R10 | CFM Module with PoE Control Function, Individual Port 25.5W (For CMI LAN module) |
| CFM-IGN03-R11 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| UB1812-R10 | Universal Bracket with 4x RJ45 Cutout |
| UB1828-R10 | Universal Bracket with 2x RJ45 Cutout |
| UB1810-R10 | Universal Bracket with 4x M12 Cutout |
| UB1830-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB1818-R10 | Universal Bracket with DIO Cutout |
| UB1803-R10 | Universal Bracket with 2x DB9 Cutout |
| RM01-R10 | 19" Rack Mount Kit for GP-3000 |
| RM02-R10 | 19" Rack Mount Kit for GP-3000/GEB-33 Series |
| RM03-R10 | 19" Rack Mount Kit for GP-3000/GEB-36 Series |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| SDR-480-24 | DIN Rail Power Supply 480W 24V, SDR-480-24 |
| HEP-1000-24 | Power Supply 1000W 24V, HEP-1000-24 |
| US Power Cord | 1.8M US Power Cord, Stripped and Tinned End with Tube |
| EU Power Cord | 1.8M EU Power Cord, Stripped and Tinned End with Tube |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
