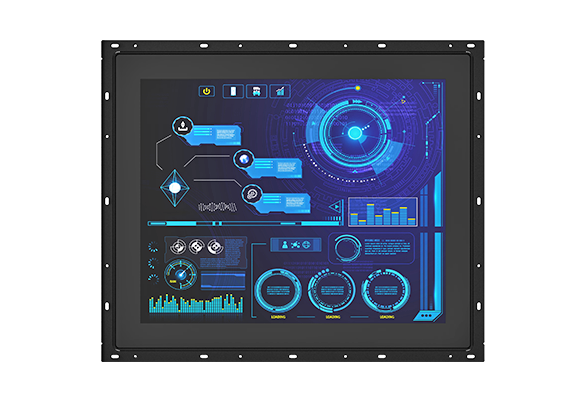

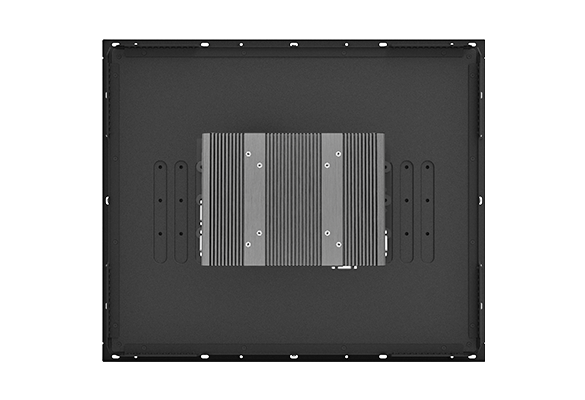

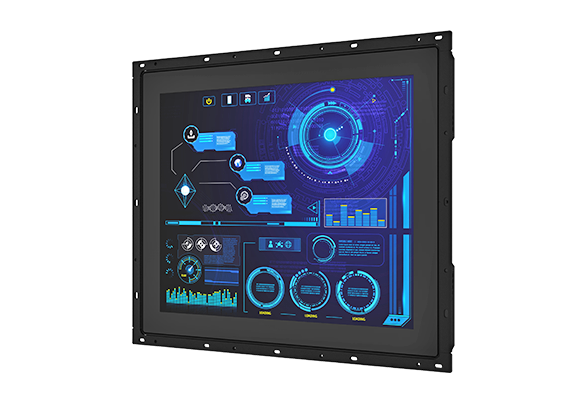

CO-119C / P1201 Series

19" 开放式架构平板电脑，搭载 Intel® Elkhart Lake Atom® x6000E 系列处理器
产品特点
  • 19" TFT-LCD 投射电容式触控
  • Intel® Elkhart Lake Atom® x6425E/x6211E 处理器
  • 1x DDR4 SO-DIMM
  • 设计具有可调整安装支架
  • 支持平板 / 标准 / VESA / 机架安装
  • 前面板符合 IP65 防护等级
  • 广泛的工作温度范围
  • Cincoze 专利 CDS 技术支持
加入咨询清单 规格表
产品介绍
Cincoze All new open frame panel pc - CO-100/P1000 Series Fits Any Machine Perfectly

德承开放式架构工业平板电脑系列 (CO-100/P1201)，搭载 Intel® Elkhart Lake Atom® 处理器，除了丰富 I/O 接口 (GbE LAN、USB3.2、COM、DIO 等)，与灵活的扩展性 (Mini PCIe、M.2 Key E Type 2230、CFM PoE/IGN) 外，亮点来自其可调式设计 (Patent No.: D224544, D224545, I802427)，透过多段刻度的调整与锁固方式，能大幅提升安装的便利度，有效降低与设备整合时的客制幅度，是专为设备制造商所开发而成的产品。不但能结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端 HMI 的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor



CPU 处理性能大幅提升

——

CO-100/P1201 系列可搭载 Intel® Elkhart Lake 平台 Atom® x6425E 四核处理器，Elkhart Lake 与上一代 Apollo Lake 相比，CPU Single - Thread 效能提升 1.7 倍，Multi-thread 效能提升 1.5 倍。图形效能也提升了 2 倍。且支持高达 3200 MHz 的 DDR4 32GB 内存。

CPU 处理性能大幅提升
CDS 专利技术


CDS 专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需换置单一组件即可达成，大幅节省升级成本。

Patent No. M482908


安装简易

——

德承专属的可调式安装支架，拥有厚度调整的选择以及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427

安装简易
一体式设计



一体式设计

——

弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。

强固、安全、更可靠

——

CO-100/P1201 系列具备一系列工业级防护，如无风扇设计、宽工作温度范围（0°C 至 60°C）、宽范围直流电源输入（9 至 48VDC）、IP65 前面板防尘/防水等，能在严峻的工业环境中，执行现场端 HMI 的应用。

强固、安全、更可靠
视频
相关报导
德承工业平板电脑 HMI 应用的全方位解决方案
2024-10-24
德承工业平板电脑 HMI 应用的全方位解决方案
工控机：发展历程、特性与解决方案
2024-09-10
工控机：发展历程、特性与解决方案
[ 产品聚焦 ] Cincoze 工业平板电脑解決方案
2024-07-18
[ 产品聚焦 ] Cincoze 工业平板电脑解決方案
德承薄型嵌入式电脑：展现一机双用硬实力
2024-01-18
德承薄型嵌入式电脑：展现一机双用硬实力
什么是人机界面(HMI): 你必须知道的定义、趋势与关键特性
2024-01-11
什么是人机界面(HMI): 你必须知道的定义、趋势与关键特性
详细规格

CO-119C

Model NameCO-119C
DisplayLCD Size• 19” (5:4)
Max. Resolution• 1280 x 1024
Brightness (cd/m2)• 350
Contrast Ratio• 1000 : 1
LCD Color• 16.7M
Pixel Pitch (mm)• 0.294 (H) x 0.294 (V)
Viewing Angle (H-V)• 170 / 160
Backlight LED Life Time• 50,000 hrs (LED Backlight)
Touch ScreenTouchscreen Type• Projected Capacitive Touch
PhysicalDimension (W x D x H)• 472.8 x 397.5 x 63mm
Weight• 6.91kg
Construction• One-piece and Slim Bezel Design
Mounting Type• Flat / Standard / VESA / Rack Mount
Mounting Bracket• Pre-installed Mounting Bracket with Adjustable Design
  (Support 11 different stages of adjustment)
PowerPower Consumption• 21W (Max.)
ProtectionIngress Protection• Front Panel IP65 Compliant * According to IEC60529
EnvironmentOperating Temperature• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature• -20°C - 60°C
Humidity• 80% RH @ 50°C (non-condensing)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P1201

Model NameP1201
SystemProcessor• Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
• Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
Memory• 1x DDR4 SO-DIMM Socket
• Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector (1920 x 1080 @60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
* Verified maximum resolution: 3840 x 2160 @60Hz
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x 1GbE LAN, RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
COM3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 3x 10Gbps USB 3.2 Gen2, Type A
• 1x 480Mbps USB 2.0, Type A
DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0)
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
ExpansionMini PCI Express1x Full-size Mini-PCIe Socket
SIM Socket1 x SIM Socket
M.21x M.2 Key E Type 2230 Socket, Support Wireless Module
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM PoE Interface for optional CFM-PoE Module Expansion
CDS (Convertible Display System) Interface1x CDS Interface for Convertible Display Module
Other FunctionClear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
OSD ButtonLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Status LED IndicatorPower LED, HDD LED, Temperature LED
PowerPower Button1x ATX Power On/Off Button
Power Mode Switch1x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1x Remote Power LED, 2-pin Terminal Block
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.54 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS / DIN Rail
Physical Design• Fanless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EnvironmentOperating Temperature-40°C to 70°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockOperating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC/EN 62368-1
订购信息
Available Models
Model No.Product Description
CO-119C-R10/P1201-X6425E-R1019" TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Atom x6425E Quad Core Processor
CO-119C-R10/P1201-X6211E-R1019" TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Atom x6211E Dual Core Processor

Model Configuration
 CO-119CP1201-X6425EP1201-X6211E
CO-119C/P1201-X6425EVV--
CO-119C/P1201-X6211EV--V

Package Checklist
• CO-119C/P1201 Series Panel PC x 1• Power Terminal Block Connector (Female) x 1
• Thermal Pad (for CPU Thermal Block) x 1• Screw Pack x 1
• DIO Terminal Block Connector (Female) x 1• Remote Power On/Off Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
