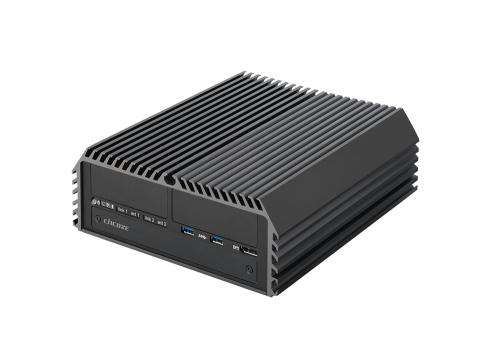

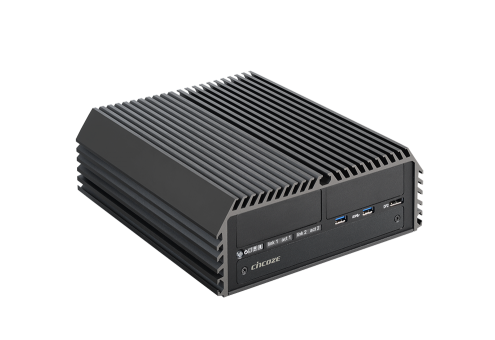

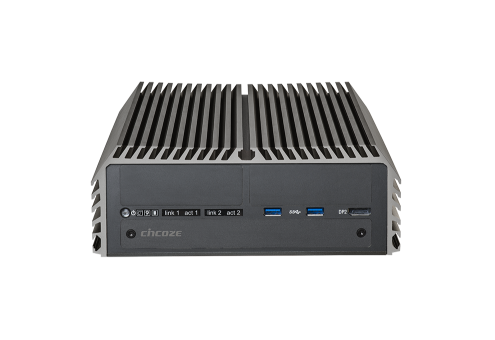

DS-1200

第9/8代Intel® Core™处理器,高性能、扩展型和模块化的强固型嵌入式系统
产品特点
  • 支持第9/8代Intel® Core™ / Pentium® / Celeron® 8 Cores 35W/65W处理器(LGA 1151)
  • 2个DDR4 SO-DIMM内存插槽,支持 2666MHz 64GB
  • 三重独立显示:1个 DVI-I 和2个 DP(4K 分辨率)
  • 1个M.2 2280 M Key插槽,自动检测PCIex4 NVMe SSD 或 SATA Gen3 SSD
  • 2个前面板可抽取式SIM卡插槽,用于信号冗余
  • 4个可用于I/O扩展的CMI插槽
  • 1个CFM插槽,可扩展智能点火控制功能
  • 宽工作温度 -40°C 至 70°C
  • EN50121-3-2 / LVD EN62368-1
产品介绍
德承DS-1200是一款高性能的无风扇嵌入式计算机,采用第9/8代Intel®Core™平台(Coffee Lake-R/S),提供多达6个核心来满足各种高端计算需求。DS-1200提供丰富的I/O,如1个PS/2、1个音频输入输出、2个RS-232/422/485串口、2个Intel®GbE网口、2个USB 3.1 (Gen2)、4个USB 3.0、2个USB 2.0并具备三重独立显示。在内存和存储方面,DS-1200可配备多达32GB的DDR4-2666 SO-DIMM内存,2个2.5寸SATA III硬盘,3个mSATA SSD和1个M.2 2280 NVMe SSD,满足高性能存储需求。

基于德承独特的CMI和CFM技术,用户可使用各种现成的模块根据自己的具体需求来配置系统。DS-1200是一款坚固耐用的嵌入式系统,具有宽工作温度(-40°C ~ 70°C),宽压直流电源输入(9V ~ 48V),抗冲击和振动能力强,高标准的工业保护,具有超级电容可免维护长效运行等特点。该系统适用于工厂自动化、机器视觉、车载计算和移动监控等恶劣环境下的高端应用。
详细规格
Model NameDS-1200
SystemProcessor• 9th Generation Intel® Coffee Lake-R S Series CPU:
 - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
 - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
 - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
 - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
 - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
 - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel® Coffee Lake S Series CPU:
 - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
 - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
 - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
 - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
 - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
 - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
 - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
 - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
 - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
 - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
ChipsetIntel Q370
Memory• 2x DDR4 2400/2666 MHz SO-DIMM Sockets
• Supports Un-buffered and Non-ECC Type Up to 64 GB
Graphics• Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3
• Integrated Intel® UHD Graphics 610: Pentium® /Celeron®
• Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)
AudioRealtek® ALC888, High Definition Audio
BIOSAMI 32MB SPI BIOS
I/O InterfaceDVI1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
DP2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
LAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
   - GbE1: Intel® I210
   - GbE2: Intel® I219-LM
Optional CMI Module
   - 4x RJ45 GbE LAN Module
   - 4x M12 GbE LAN Module
PoE+Optional CMI & CFM Module
   - 4x PoE+, Individual port 25.5W, RJ45 Port
   - 4x PoE+, Individual port 25.5W, M12 Port
COM2x RS-232/422/485, DB9
Optional CMI Module
   - 4x Isolated COM Module
   - 4x COM Module
      * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9
USB2x USB 3.2 Gen2 (TypeA)
4x USB 3.2 Gen1 (TypeA)
2x USB 2.0 (Type A)
PS/2 Port1x PS/2, 6-pin mini-DIN Female Connector
Isolated DIOOptional CMI Module
   - 16x Optical Isolated DIO Module (8 in/8 out)
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector1x External FAN Connector, 4-pin Terminal Block
StorageSSD/HDD• 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable
• Supports RAID 0/1
M.21x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
mSATA3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
ExpansionCFM (Control Function Module) Interface1x CFM (Control Function Module) Interface
CMI (Combined Multiple I/O) Interface2x CMI (Combined Multiple I/O) High Speed Interface
2x CMI (Combined Multiple I/O) Low Speed Interface
Mini PCI Express
3x Full-size Mini-PCIe Socket
Universal I/O Bracket4x Universal I/O Bracket
SIM Socket2x SIM Socket
Antenna Holes2x Antenna Holes
OtherInstant RebootSupport 0.2sec
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
  - AC/DC 24V/5A, 120W
  - AC/DC 24V/9.2A, 220W
PhysicalDimension (WxDxH)227 x 261 x 88 mm
Weight Information4.92 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Unibody DesignYes
Fanless DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
Operating SystemWindowsWindows® 10
LinuxSupports by project
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 51~65W TDP Processor: -40°C to 45°C
 * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
 * With extended temperature peripherals; Ambient with air flow
 * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
MTBF396,565 Hours
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
订购信息
Available Models
Model No.Product Description
DS-1200-R109/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

Package Checklist
√ DS-1200 Embedded System x 1√ Power Terminal Block Connector x 1
√ Heat Sink Pack x 1√ Remote Power On/Off Terminal Block Connector x 1
√ Screw Pack x 1√ Remote Power Reset Terminal Block Connector x 1
√ Wall Mount Kit x1√ Fan Terminal Block Connector x 1
√ DVI-I to VGA Adaptor

Optional Modules & Accessories
Model No.Description
CFM-PoE03CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
CMI-LAN01-R12/UB1012CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12/UB1010CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10/UB1030-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout
CMI-DIO02/UB1018CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
CMI-COM02/UB1004CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-ICOM01/UB1004CMI Module with 4x Isolated RS232 Ports / 1x Universal Bracket with 4x DB9 Cutout
MEC-COM-M212-DB9/UB0303Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout
MEC-USB-M102-30/UB0314Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x30 cm cable, 1x Universal Bracket with 2x USB Cutout
MEC-LAN-M102-30/UB0311Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
PAH01Power Adapter Holder for GST120A24
PAH02Power Adapter Holder for GST220A24
GST120A24-CINAdapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
