DI-1000-i5
第6代Intel® Core™处理器（Sky Lake-U），高性能、紧凑型和模块化的强固型嵌入式系统
产品特点
- 板载第6代 Intel® Core™ i5-6300U处理器（BGA）
- 1个DDR4 SO-DIMM 内存插槽，可达32 GB
- 三重独立显示（DVI-I, DisplayPort）
- 紧凑型尺寸（W203 x D142 x H66.8 mm） ，重量1.65 kg
- 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘，支持RAID 0/1

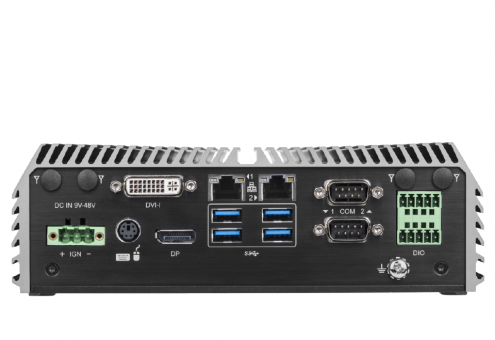

- 丰富的I/O，包含1个DVI-I，1个DP，2个千兆网口，6个串口，6个USB和8路光学隔离 DIO
- 支持I/O扩展的CMI接口
- 支持POE +和智能点火控制（带可选配的CFM模块）

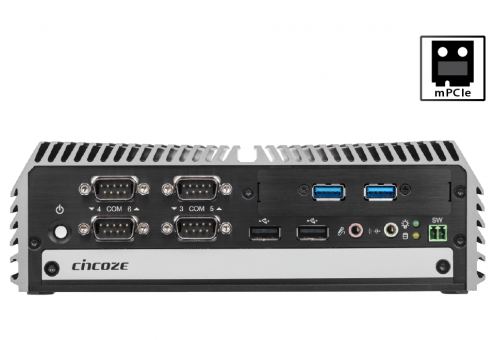

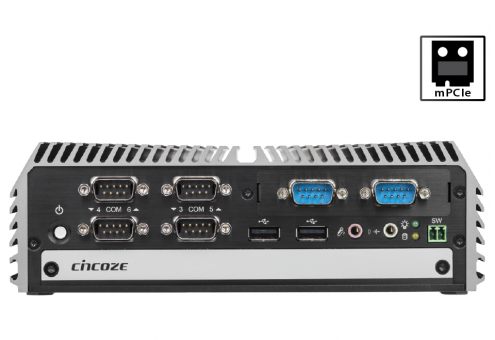

- 2个全尺寸Mini-PCIe插槽，适用于各种I/O扩展
- 宽工作温度 -40°C 至 70°C
- EN50121-3-2铁路应用认证
- E-Mark (E13, No. 10R-0514273)车载应用认证
产品介绍

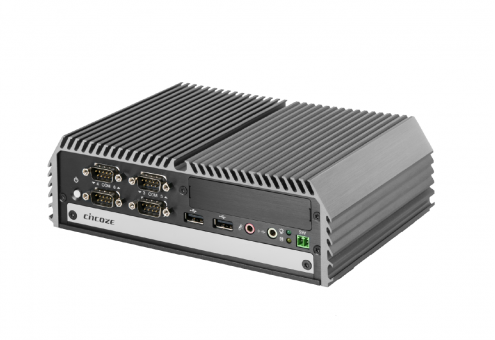

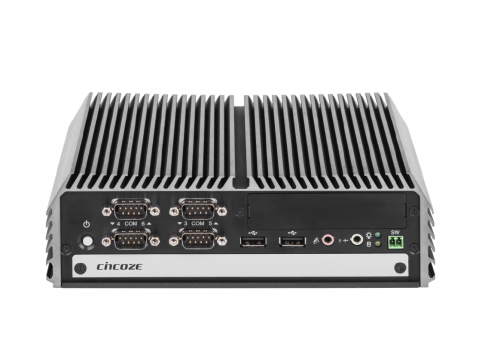

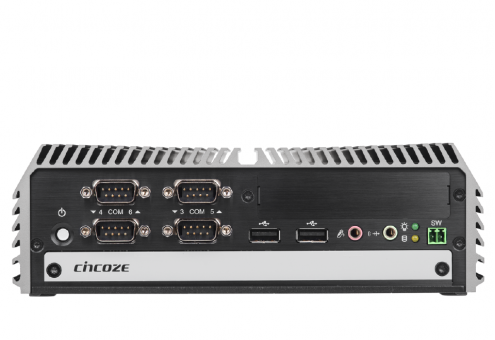

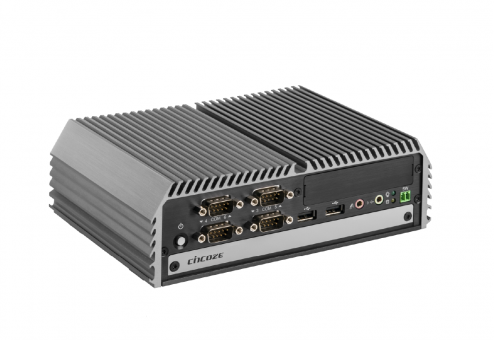

德承DI-1000系列是一款高性能、紧凑、模块化的无风扇嵌入式计算机，采用第6代Intel®Core™移动处理器(Skylake-U)，集成Intel®HD图形引擎，1个DDR4内存插槽可达32GB，使DI-1000系列能够满足各种高端计算需求。DI-1000系列尺寸W203 x D142 x H66.8毫米非常紧凑，却拥有多样的I/O，包括DVI-I和DP显示接口，2 个千兆网口，6个串口，6个USB，8路光学隔离 DIO，1个PS / 2接口，音频输入输出和远程电源开关，支持两个全尺寸Mini-PCIe插槽可安装无线通信和I / O扩展，容纳两个2.5” SATA HDD / SSD（1个热插拔抽取式托盘和1个内置托盘）支持RAID 0/1，使DI-1000系列在市场上同紧凑尺寸机型中拥有相较多样的功能。
DI-1000系列仅重1.65公斤，支持4种安装方式（壁挂、导轨、侧挂和VESA），允许您安装在任何狭小的地方。搭配德承的CMI（接口扩展模块）、CFM（控制功能模块）和MEC（Mini-PCIe扩展模块）技术，使DI-1000系列可根据具体需要进行各式各样的扩展，包括多网口（RJ45 / M12）、网口供电（PoE）、智能点火控制和各种类型的I/O接口，DI-1000系列是工厂自动化、机器视觉、车载和移动监视应用的创新解决方案。
DI-1000系列仅重1.65公斤，支持4种安装方式（壁挂、导轨、侧挂和VESA），允许您安装在任何狭小的地方。搭配德承的CMI（接口扩展模块）、CFM（控制功能模块）和MEC（Mini-PCIe扩展模块）技术，使DI-1000系列可根据具体需要进行各式各样的扩展，包括多网口（RJ45 / M12）、网口供电（PoE）、智能点火控制和各种类型的I/O接口，DI-1000系列是工厂自动化、机器视觉、车载和移动监视应用的创新解决方案。
相关报导
详细规格
| Model Name | DI-1000-i5 | |
| System | Processor | Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP) |
| Chipset | SoC | |
| Memory | 1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB (2133MHz, Un-buffered and Non-ECC type) | |
| Graphics | • Integrated Intel® HD Graphics • Three Independent Display | |
| Audio | • Realtek® ALC888-GR • High Definition Audio | |
| BIOS | AMI 8Mbit SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I Connector, Resolution 1920 x 1080 |
| DP | 1x DisplayPort Connector, Resolution 3840 x 2160 | |
| LAN | 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 - GbE1: Intel I210 - GbE2: Intel I219-LM | |
| Serial Port | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | ．4x USB 3.0, Type-A ．2x USB 2.0, Type-A | |
| PS/2 Port | 1x PS/2, 6-Pin Mini-DIN Female Connector | |
| Isolated DIO | 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible & Hot-swappable) |
| mSATA | 2x mSATA (Shared by Mini-PCIe Socket) (Gen3) | |
| Expansion | CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules |
| CMI (Combine Multiple I/O) Interface | 1x CMI Interface for CMI Modules | |
| Mini PCI Express | 2x Full-size Mini PCIe Supports Wireless & I/O Expansion | |
| SIM Socket | 1x SIM Socket | |
| Other Function | CFM | Support CFM (Control Function Module) Technology |
| CMI | Support CMI (Combined Multiple I/O) Technology | |
| Instant Reboot | Support 0.2sec | |
| Super Cap | Super Cap integrated for CMOS Battery Maintenance-free | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W | |
| Physical | Dimension (WxDxH) | 203 x 142 x 66.8 mm |
| Weight Information | 1.65 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / Side / DIN-RAIL / VESA | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Cable-less Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Surge | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| MTBF | Time | 360, 145 Hours |
| Calculation Model | Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | GB, GC | |
| Temperature | 40°C | |
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
| Environment | Operating Temperature | Operating Temperature: -40°C to 70°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, FCC Class A, EN50121-3-2, E-Mark (E13, No. 10R-0514273) | |
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DI-1000-i5 | 6th Gen. Intel® Core™ i5-6300U High Performance, Compact and Modular Rugged Embedded Computer |
Package Checklist
| √ DI-1000 Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ CPU Heatsink Thermal Pad x 1 | √ Remote Power On/Off Terminal Block Connector x 2 |
| √ Utility DVD Driver x 1 | √ DIO Terminal Block Connector x 2 |
| √ Screw Pack x 1 | √ DVI-I to VGA Adaptor |
| √ Wall Mounting Kit x 1 |
Optional Accessories
| Model No. | Description |
| CFM-IGN102 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V |

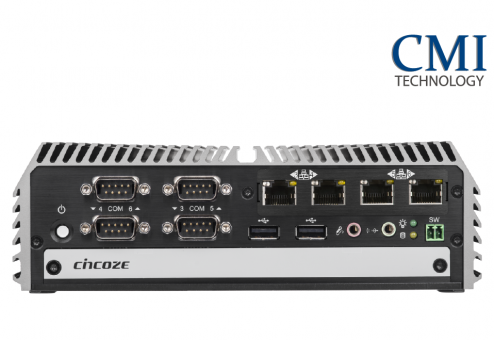

| CMI-LAN01-R12/UB0712 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket |

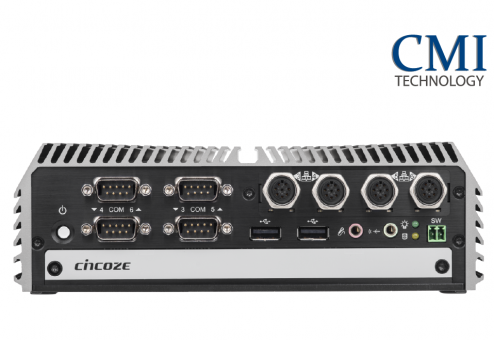

| CMI-M12LAN01-R12/UB0710 | CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket |
| MEC-COM-M212/UB0703 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets |
| MEC-LAN-M102-15/UB0711 | Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket |
| MEC-USB-M102-15/UB0714 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| SIDE01 | SIDE Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI |
