P2002E
第6代Intel® Core™处理器(Sky Lake-U),转换型、扩展型嵌入式系统,支持CFM和CDS技术及PCI/PCIe扩展
产品特点
- 板载第6代Intel® Core™ U 系列处理器(功耗15W)
- 2个DDR4 SO-DIMM内存插槽,可达32 GB
- 支持三重独立显示
- 2个2.5” SATA HDD / SSD托盘,1个mSATA和1个CFast插槽
- 2个全尺寸Mini-PCIe插槽,适用于各种I/O扩展
- 1个PCI 或1个PCIex4 扩展槽
- 支持CFM(功能扩展模块)技术
- 支持2个PoE+,单个网口可提供25.5W大功耗(带可选配的CFM模块)
- 支持智能点火控制功能(带可选配的CFM模块)
- 丰富的I/O接口(2个GbE网口,6个串口,5个USB,16个独立DIO)
- 支持即时重启技术
- 支持CDS技术,可转换为平板电脑模块
- 宽工作温度 -25°C 至 70°C
- 集成超级电容,无需维护电池
产品介绍

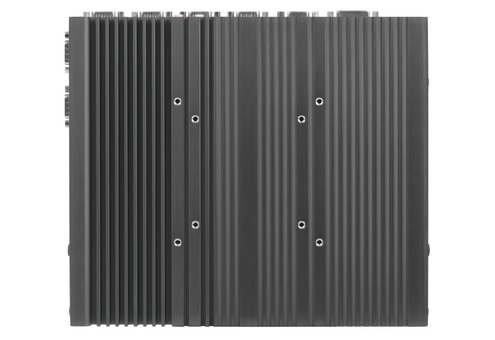

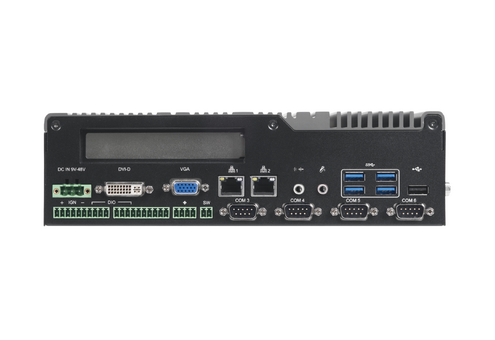

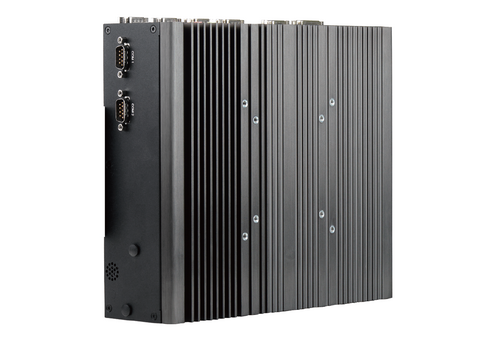

德承P2002E是一款高性能无风扇嵌入式系统模块,采用第6代Intel® Core™ U系列移动式处理器,功耗仅为15瓦。增强的显卡性能支持三重独立显示,具有1个VGA,1个DVI-D和1个CDS界面。P2002E提供丰富的I/O接口,包括2个GbE网口、5个USB和6个串口,还支持3种类型的存储设备,包括2.5寸SATA硬盘、CFast和mSATA,这些存储设备采用易访问性的设计,允许您快速的获取数据和易于维护。支持1个PCI 或1个PCIex4 扩展槽,可扩展各种应用的扩展卡。
P2002E支持CFM技术,可以通过附加模块来增加智能点火控制与网口供电(POE)功能。 此外,透过德承的CDS模块化专利技术,P2002E同时也是CV-100系列和CS-100系列工业平板电脑的运算主机。支持宽工作温度从-25°C到70°C,9至48V的宽压直流电源输入,防震抗冲击,各种工业级保护,集成超级电容且无需维护电池,这些特性使P2002E成为一款强固型计算系统,可轻松地部署在恶劣的环境和关键的应用中。
P2002E支持CFM技术,可以通过附加模块来增加智能点火控制与网口供电(POE)功能。 此外,透过德承的CDS模块化专利技术,P2002E同时也是CV-100系列和CS-100系列工业平板电脑的运算主机。支持宽工作温度从-25°C到70°C,9至48V的宽压直流电源输入,防震抗冲击,各种工业级保护,集成超级电容且无需维护电池,这些特性使P2002E成为一款强固型计算系统,可轻松地部署在恶劣的环境和关键的应用中。
详细规格
P2002E
Model Name | P2002E | |
---|---|---|
System | Processor | Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W |
Memory | 2x DDR4 2133 MHz SO-DIMM Sockets Support Un-buffered and Non-ECC Type up to 64 GB | |
BIOS | AMI 64Mbit SPI BIOS | |
Graphics | Graphics Engine | Intel® HD Graphics 520 |
Maximum Display Output | Supports Triple Independent Display (1x CDS, 1x VGA, 1x DVI-D) | |
VGA | 1x VGA Connector(Up to 1920 x 1080 @ 60Hz), DB-15 | |
DVI-D | 1x DVI-D Connector (Up to 1920 x 1080 @ 60Hz) | |
Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 |
PoE+ | 2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | |
USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A) | |
Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block | |
Line-out & Mic-in | 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |
Power Mode Switch | 1x AT/ATX Mode Switch | |
Power Switch | 1x Power On/Off Switch | |
Reset Button | 1x Reset Button | |
Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
External Fan | 1x External FAN Connector, 4-Pin Terminal Block | |
Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) |
mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |
CFast | 1x CFast Socket (Gen3) | |
Expansion | PCI Express | 1x PCI or 1x PCIex4 Expansion slot Optional Riser Card: 1x PCI, 1x PCIex4 Support maximum dimension of add-on card (H x L): 100mm x 200mm |
Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
SIM Socket | 1x SIM Socket | |
CFM (Control Function Module) Interface | Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function | |
CDS (Convertible Display Systems) Technology | 1x CDS Interface, Compact PCI Connector | |
I/O Brackets | 1x Universal I/O Bracket | |
Antenna Hole | 4x Antenna Hole | |
Other Function | Audio Codec | Realtek® ALC888, High Definition Audio |
Instant Reboot | Support Instant Reboot Technology (0.2 sec) | |
OSD Function | LCD On/Off, Brightness Up, Brightness Down for CDS Display Module | |
Internal Speaker | AMP 2W + 2W | |
CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
Power | AT/ATX Power | Support AT, ATX Mode |
Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | |
Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W | |
Physical | Dimension ( W x D x H ) | 254.5 x 220 x 72 mm |
Weight Information | 3.18 kg | |
Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
Mounting | Support Wall / VESA / CDS Mounting | |
Physical Design | Fanless Design Jumper-less Design | |
Reliability & Protection | Reverse Power Input | Yes |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | |
Over Current Protection | 15A | |
ESD Protection | +/-8kV (air), +/-4kV (contact) | |
Surge Protection | 2kV | |
CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
Operating Stystem | Microsoft® Windows® | Windows®10, Windows® 8.1, Windows® 7 |
Linux | Linux® Kernel 4.4 | |
Environment | Operating Temperature | Operating Temperature: -25°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
Storage Temperature | Storage Temperature: -40°C to 85°C | |
Relative Humidity | Relative Humidity: 95% RH @ 40°C (Non-condensing) | |
Shock | Operating, 50 Grms, Half-sine 11 ms Duration (with SSD, according to IEC60068-2-27) | |
Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (with SSD, according to IEC60068-2-64) | |
EMC | CE, UKCA, FCC, ICES-003 Class A |
订购信息
Model No. | Product Description |
---|---|
P2002E-i5-R10 | Intel® 6th Gen. Core i5-6300U Expandable Fanless Computer with CFM and CDS Interface |
P2002E-i5-E4-R10 | Intel® 6th Gen. Core i5-6300U Expandable Fanless Computer with CFM and CDS Interface, 1x PCIex4 Expansion |
P2002E-i5-PI-R10 | Intel® 6th Gen. Core i5-6300U Expandable Fanless Computer with CFM and CDS Interface, 1x PCI Expansion |
P2002E-i3-R10 | Intel® 6th Gen. Core i3-6100U Expandable Fanless Computer with CFM and CDS Interface |
P2002E-i3-E4-R10 | Intel® 6th Gen. Core i3-6100U Expandable Fanless Computer with CFM and CDS Interface, 1x PCIex4 Expansion |
P2002E-i3-PI-R10 | Intel® 6th Gen. Core i3-6100U Expandable Fanless Computer with CFM and CDS Interface, 1x PCI Expansion |
√ P2002E System x 1 |
√ DIO Terminal Block Connector x 1 |
√ Power Terminal Block Connector x 1 |
√ Fan Terminal Block Connector x 1 |
√ Wall / CDS Mounting Kit x 1 |
√ Remote Power On/Off Terminal Block Connector x 1 |
√ Screw Pack x 1 |
Model No. | Description |
---|---|
CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
CFM-PoE101 | CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) |
MEC-COM-M212/UB0503 | Mini-PCIe Module with 2x COM Ports, 1x Universal Bracket (154 x 17 mm) |
MEC-COM-M334/UB0504 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm) |
MEC-FIR-M003/UB0501 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (154 x 17 mm) |
MEC-LAN-M102-30/UB0511 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2000 Series |
MEC-USB-M002/UB0514 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (154 x 17 mm) |
RC-E4-01 | Riser Card with 1x PCIex4 Slot |
RC-PI-01 | Riser Card with 1x PCI Slot |
Model No. | Description |
---|---|
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
