DA-1000

Intel® Atom™ 或 Celeron® 处理器,紧凑型无风扇嵌入式系统
产品特点
  • 板载 Intel® Atom™ 或 Celeron® 处理器
  • 1个DDR3L 1066/1333 SO-DIMM内存插槽,最大可达8GB
  • 2个Intel® I210 GbE网口,支持巨型帧、网络唤醒(Wake-on-LAN)和预启动执行环境(PXE)
  • 紧凑尺寸(W150 x D105 x H56.02mm)
  • 支持双重独立显示,本身1个DVI-I,可另外扩展多种显示接口
  • 宽工作温度 -25°C 至 70°C
  • 9~48VDC宽压电源输入,支持AT/ATX 模式
  • 支持I/O扩展的CMI接口
  • 多种安装方式(壁挂、导轨、侧挂和VESA)
产品介绍

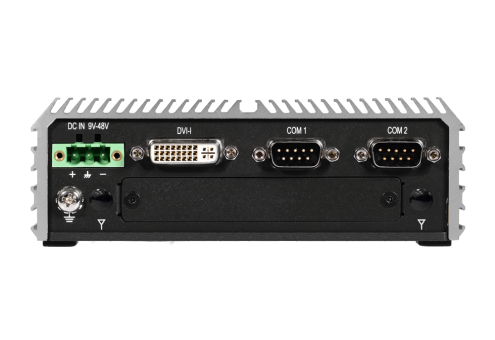

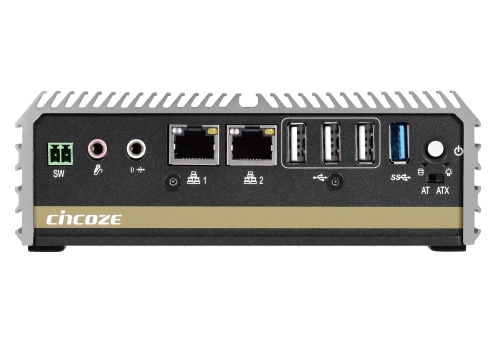

DA-1000系列是采用Intel® Atom™或 Celeron®处理器的紧凑型无风扇嵌入式计算机,同时集成了支持双显的高清图形显示芯片。这可以带来预算上的经济优势,也可以满足工业计算任务的需要。DA-1000系列设计将各种各样的I/O接口封装到其紧凑的尺寸中,包括1个DVI-I端口、2个RS-232/422/485 串口、2个GbE 网口、4个USB端口和1组音频输入输出。

DA-1000系列支持德承的CMI模块,特别为灵活的I/O扩展能力而设计的CMI模块,允许用户根据需要扩展各种I/O接口,包括:串口、数字IO、LPT/PS2、DisplayPort、DVI或VGA。坚固耐用的结构,宽工作温度,防震抗冲击,免维护,使DA-1000系列能够部署在恶劣的环境和关键的应用中。
详细规格
Model NameDA-1000
Processor SystemCPU• Intel® Atom™ Processor E3826 (1M Cache, Upto 1.46 GHz SoC, 7W TDP)
• Intel® Atom™ Processor E3845 (2M Cache, Upto 1.91 GHz SoC, 10W TDP)
• Intel® Celeron® Processor J1900 (2M Cache,Up to 2.42 GHz SoC, 10W TDP)
FrequencyUp to 1.46 GHz
Core Number2
BIOSAMI 64Mbit SPI
Chipset-
MemoryTechnologyDDR3L 1066/1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket1x 204-Pin SO-DIMM
DisplayDual Display Supported1x DVI-I
(1x DVI-D and 1x VGA with optional split cable)
ExpansionPCI-
PCIe-
Mini PCIe2x Full-size Mini-PCIe
SIM Socket1
EthernetController2x Intel® GbE1: Intel I210 GbE LAN Port.
Support Wake-on-LAN, Jumbo Frame and PXE
PoE-
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in and 1x Line-out
WatchDog TimerSoftware Programmable Supports 256 Levels System Reset
StorageSSD / HDD1x 2.5" SATA HDD Bay (Optional 1x Half-Slim SSD, SATA 2.0)
mSATA1 (SATA 2.0, Shared by Mini-PCIe Socket)
USB
I/O Ports1x 5Gbps USB 3.2 Gen1, Type A
3x 480Mbps USB 2.0, Type A
COM Port2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan Connector-
Remote Power On/Off and
Remote Power Reset
Yes
Universal I/O Bracket1
Power
Requirement
Power TypeAT / ATX
Power Supply Voltage9~48VDC
Connector1x 3-pin Terminal Block
1x 2-pin Terminal Block Connector (For Remote Power On/Off)
Power AdaptorOptional AC/DC 12V/5A, 60W
Power Consumption Typical 8.3W, Max.15W
EnvironmentOperating TemperatureAmbient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 40˚C (Non-condensing)
Shock50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
VibrationRandom: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety• CB62368-1, IEC/EN 62368-1
PhysicalDimension (WxDxH)150 x 105 x 52.3 mm
Weight0.86kg
ConstructionAluminum Chassis with Fan-less Design
MountingVESA/Wall Mounting (Optional DIN-Rail/Side Mounting)
Operating SystemWindows• Windows® 10
• Windows® 8.1
• Windows® 7
All product specifications and information are subject without notice.
订购信息
Available Models
Model No.Product Description
DA-1000-R10Intel® Atom™ E3826 Affordable Fanless Embedded Computer
DA-1000-E45-R10Intel® Atom™ E3845 Affordable Fanless Embedded Computer
DA-1000-J19-R10Intel® Celeron® J1900 Affordable Fanless Embedded Computer

Package Checklist
√ DA-1000 Embedded System x 1√ DVI-I to VGA Adapter x 1
√ Power Terminal Block Connector x 1√ Screw Pack x 1 (For HDD/Mini-PCIe/Wall & VESA Mounting)
√ Remote Power On/Off Terminal Block Connector x 1√ Wall Mount Kit x 1

Optional Modules & Accessories
Model No.Description
CMI-COM102/UB0403CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x 15 mm)
CMI-DIO100/UB0415CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x Universal Bracket (96 x 15 mm)
CMI-DP101/UB0406CMI Module with 1x DisplayPort, 1x Universal Bracket (96 x 15 mm)
CMI-DVI101/UB0407CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96 x 15 mm)
CMI-LPPS102/UB0409CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket (96 x 15 mm)
CMI-VGA101/UB0416CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15 mm)
CMI-HD01/UB0408CMI Module with 1x HDMI Port for DA Series, 1x Universal Bracket with HDMI Cutout for DA Series
MEC-LAN-M102-15/UB0411Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96 x 15 mm)
SIDE02Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
HBK01DA-1000 Half-Slim SSD Bracket with 6x Screws
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, with 3pin Terminal Block Plug 5.0mm Pitch with Tubes, Level VI
