P1001E
Intel® Atom™ E3845处理器,支持CDS技术的转换型、扩展型嵌入式系统
产品特点
- 板载Intel® Atom™ E3845 四核处理器,1.91GHz
- 1个DDR3L SO-DIMM内存插槽,可达8GB

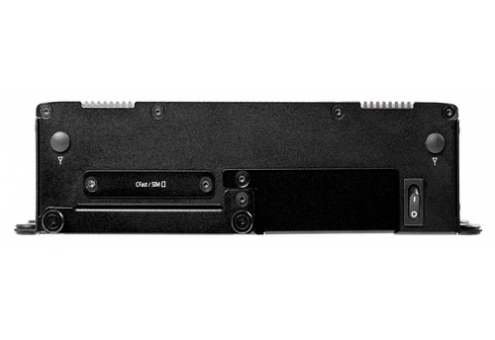

- 1个2.5” SATA HDD / SSD托盘,1个CFast卡和1个SIM卡插槽

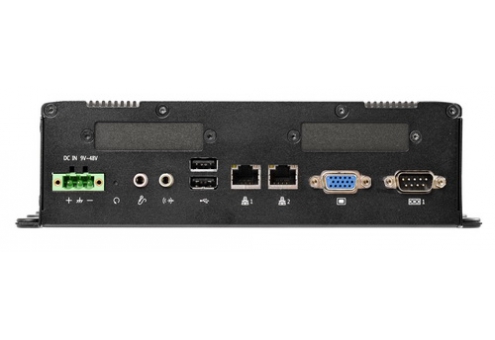

- 2个网口,4个USB,2个串口,1个VGA,1个DisplayPort,4个独立DI/4个独立DO
- 9至48V的宽压直流电源输入
- 1个全尺寸Mini-PCIe插槽
- 2个通用挡片,可用于扩展
- 支持壁挂、VESA安装
- 支持CDS技术,可转换为平板电脑模块
- 内建2个2W扬声器
产品介绍
P1001E采用Intel® Atom™ E3845 四核1.91GHz处理器,是一款无风扇嵌入式系统模块。透过德承的CDS模块化专利技术,P1001E同时也是CV-100系列和CS-100系列工业平板电脑的运算主机,允许您按需求配置、升级和维护。
P1001E提供丰富的I/O接口,包括2个网口,4个USB, 2个RS232/422/485串口,1个VGA,1个 DisplayPort,4个DI/4个DO,1个全尺寸Mini-PCIe插槽支持3G和WLAN。拥有2个通用挡片,可用于额外的扩展。还支持3种类型的存储设备,包括2.5寸SATA硬盘,CFast和SIM卡,这些存储设备采用易访问性的设计,允许您快速的获取数据和易于维护。9至48V的宽压直流电源输入,防震抗冲击,各种工业级保护,P1001E可转换的特性是您配置平板电脑时的理想解决方案,同时它也是一款强大的无风扇嵌入式计算机,可满足各种工业应用。
P1001E提供丰富的I/O接口,包括2个网口,4个USB, 2个RS232/422/485串口,1个VGA,1个 DisplayPort,4个DI/4个DO,1个全尺寸Mini-PCIe插槽支持3G和WLAN。拥有2个通用挡片,可用于额外的扩展。还支持3种类型的存储设备,包括2.5寸SATA硬盘,CFast和SIM卡,这些存储设备采用易访问性的设计,允许您快速的获取数据和易于维护。9至48V的宽压直流电源输入,防震抗冲击,各种工业级保护,P1001E可转换的特性是您配置平板电脑时的理想解决方案,同时它也是一款强大的无风扇嵌入式计算机,可满足各种工业应用。
详细规格
P1001E
Model Name | P1001E | |
---|---|---|
System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz |
Memory | 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB | |
BIOS | AMI 64Mbit SPI BIOS | |
Graphics | VGA | 1x VGA Connector (1920x1080@60Hz) |
DP | 1x DisplayPort Connector (1920x1080@60Hz) | |
Audio | Line-out | 1x Line-out, Phone Jack 3.5mm |
Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 |
USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) | |
COM | 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control | |

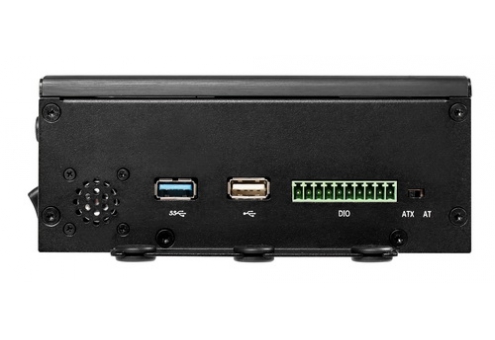

DIO | 8x Digital I/O (4in/4out) | |
Power Mode Switch | 1x AT/ATX Mode Switch | |
Power Switch | 1x Power Switch | |
Reset Button | 1x Reset Button | |
Storage | SSD/HDD | 1x 2.5" SATA HDD Bay |
CFast | 1x External CFast Socket | |
SIM Card | 1x External SIM Card Socket | |
Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module |
I/O Brackets | 2x Universal I/O Brackets | |
Other Function | Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
Internal Speaker | AMP 2W + 2W (Internal Speaker) | |

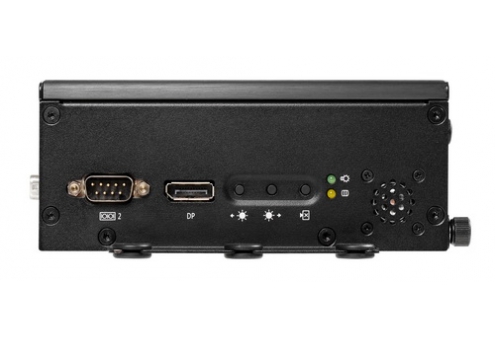

OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
Power | AT/ATX Power | Support AT, ATX Mode |
Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | |
Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W Power Adapter | |
Physical | Dimension ( W x D x H ) | 204.5 x 150 x 60 mm |
Weight Information | 1.54kg | |

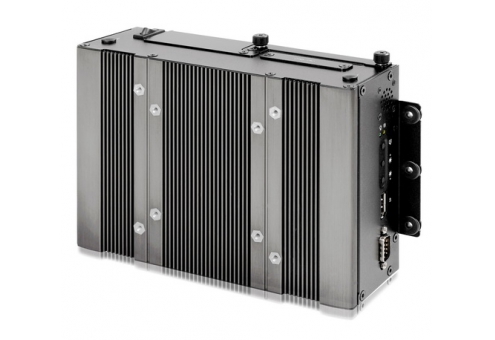

Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
Mounting | Wall / VESA / CDS Mounting | |
Reliability & Protection | Reverse Power Input | Yes |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | |
Over Current Protection | 20A | |
ESD Protection | +/-8kV (air), +/-4kV (contact) | |
Surge Protection | 2kV | |
Operating Stystem | Microsoft® Windows® | Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7 |
Linux | Supports by project | |
Environment | Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) |
StorageTemperature | -30°C to 85°C | |
Relative Humidity | 10%~95% (non-condensing) | |
Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
EMC | CE, UKCA, FCC, ICES-003 Class A |
订购信息
Model No. | Product Description |
---|---|
P1001E | Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
√ P1001E PC Module x 1 |
√ DIO Terminal Block Connector (Female) x 1 |
√ Power Terminal Block Connector (Female) x 1 |
√ Screw Pack x 1 |
Model No. | Description |
---|---|
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
