CV-108 / M1001

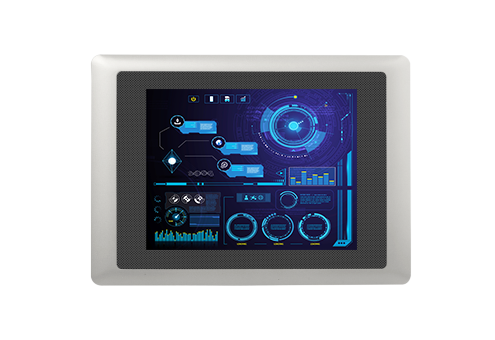

8.4" TFT SVGA 4:3 工业触摸显示器
产品特点
  • 8.4" TFT SVGA 4:3 LCD 投射电容式或5线电阻式触摸屏
  • 1个VGA,1个DVI-D,1个DisplayPort
  • 1个USB,1个串口,1个音频输入
  • 采用铝压铸前框设计
  • IP 65防护等级的前面板
  • 支持面板安装、VESA安装、机架安装
  • 支持CDS技术
  • 内建2个5W扬声器
产品介绍
CV-108/M1001是一款8.4寸的工业触摸显示器,带投射电容式或5线电阻式触摸屏,提供分辨率高达800 x 600 (SVGA) 和400 nits的亮度。具有全平面和IP65防尘/防水的前面板,前框架采用铝压铸制造,十分坚固可靠,适用于工业应用和恶劣环境。

CV-108/M1001支持CDS模块化技术,可以轻松配置、升级和维护您的触摸显示器。同时提供数字和类比视频信号输入接口,包括VGA、DVI-D与DisplayPort。另外具有OSD多语言屏幕菜单式调节功能,并支持1个USB和1个COM端口作为触摸屏的连结控制。支持从9到48V的宽压直流电源输入,可部署于各种工业显示应用。
详细规格
Model SeriesCV-108/M1001
Model NameCV-108R/M1001CV-108C/M1001
DisplayLCD Size8.4" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)400
Contrast Ratio600 : 1
LCD Color262K
Pixel Pitch (mm)0.213 (H) x 0.213 (V)
Viewing Angle (H-V)150 / 130
Backlight MTBF30000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemA/D BoardNovatek NT68856UFG
VGA Input1
DVI-D Input1
DisplayPort Input1
USB 2.0 Input1
1
Audio Input
Power Switch1
Other FeaturesAudio AMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/Off, Auto, Menu, Up and Down Multi-language OSD
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)262 x 186 x 66 mm
Weight Information2.74 kg2.68 kg
Construction Front PanelDie-casting Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless DesignV
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
LiunxKernel 3.x
EnvironmentOperating Temperature-5°C to 60°C (with extended temperature peripherals; Ambient with air flow)
Storage Temperature-20°C to 75°C-20°C to 70°C
Relative humidity90% RH @ 60°C (non-condensing)85% RH @ 60°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
订购信息
Available Models
Model No.Product Description
CV-108R/M10018.4" TFT SVGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB,1x VGA, 1x DVI-D and 1x DisplayPort
CV-108C/M10018.4" TFT SVGA 4:3 Monitor with P-Cap Touch, 1x USB,1x VGA, 1x DVI-D and 1x DisplayPort

Package Checklist
CV-108/M1001
√ CV-108/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
相关下载
Datasheet
文件名发行日期下载
CV-108/M1001 Datasheet2019/02/15下载
Manual
文件名发行日期下载
CV-100 / M1000 Series Manual2019/02/27下载
Driver
文件名发行日期下载
M1001 Resistive Touch Driver (Windows Version)2016/01/07下载
