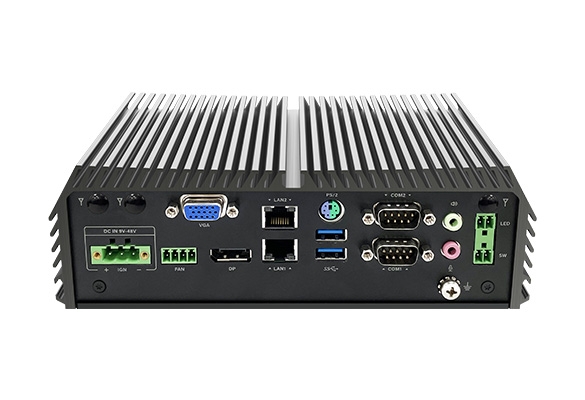

DI-1100

Intel® 第八代 Core™ 系列处理器,高效且节能的强固型电脑
产品特点
  • Intel® 第八代 Core™ Ui7/i5/i3 处理器 (TDP 15W)
  • 前维护区 1x 2.5” HDD / SSD 热插拔抽取式托盘,可快速抽取硬盘。支援 1x mSATA 插槽
  • 2 x 全尺寸Mini PCIe 插槽,增添多元扩展性
  • 2 x 前置 SIM 卡插槽,确保行动数据传输不间断
  • CMI-I/O 扩展模块 (选配) : 支持 2x 10 GbE LAN、M12(A型或 X型接口)
  • CFM 功能扩展模块 (选配) : 支持智能点火控制、4x PoE
  • 宽工作温度 -40°C 至 70°C
  • 通过 MIL-STD-810G、E-mark、EN50155(EN 50121-3-2 only)认证
产品介绍

体积外型紧凑的DI-1100具备了高效能、丰富的 I/O和扩展的灵活性。DI-1100搭载第 8 代Intel® Core™ U系列处理器(Whiskey Lake),在提供性能的同时也拥有 15W TDP 的低功耗优势。在紧凑外型下蕴含丰富 I/O 接口并支持多种功能扩展的选项,可满足狭小空间中对高效能强固嵌入式电脑的需求,适合工业自动化、仓储物流、交通、安全监控以及物联网等应用。


高效能、低功耗


高效能、低功耗

power saving icon

——

DI-1100 采用第 8 代Intel® Core™ U系列 i7/i5/i3处理器,其运算效能能轻松满足对于图形和运算的要求,面对物联网时代各式外围设备数据串联汇整的应用也游刃有余。仅15W TDP的超低功耗,非常适合受限于电池容量的移动式设备。


小而紧凑

——

DI-1100 外形紧凑,尺寸仅203 mm (W) x 142 mm (D) x 66.8 mm (H),无论是安装在移动设备(自动导引车AGV、自主移动机器人AMR)、封闭狭小的车内空间或是工厂端的小型机箱中,都是非常理想的选择。

小而紧凑

丰富的工业 I/O和功能

丰富的工业 I/O和功能

——

紧凑尺寸下具备丰富 I/O和功能。原生端口包括:2x GbE LAN、4x USB 3.2、2x USB 2.0、2x RS232/422/485 ,能够轻松连接各式传输接口的设备。支持 2x 全尺寸Mini PCIe可扩展无线传输模块, 2x SIM 卡插槽可确保行动数据传输不间断。精心设计的外置风扇,可有效排除由PoE供电的高功率相机所产生的热量,确保效能及稳定性。


特有的扩展能力

——

DI-1100 可藉由德承专属的CMI及CFM模块进行I/O及功能的扩展,系统整合商可灵活配置并快速实现功能部署。CMI 模块可扩展额外的 LAN、10GbLAN、M12(A型或 X型接口)等各种 I/O接口,而 CFM 模块可增添智能点火控制及 PoE 功能。

特有的扩展能力

多元灵活的安装方式

多元灵活的安装方式

——

DI-1100支持多种安装方式,包括壁挂/ 侧挂/ 导轨(DIN -rail)/ VESA 安装。无论是现场端、机箱中还是设备内部,皆可快速进行安装。


行业认证的强固设计

——

DI-1100 传承一贯专为工业环境打造的强固设计。除宽温(-40至70°C)、宽电压(9 - 48 VDC)以及过电压、过电流和静电保护(ESD)等保护机制外,也符合美军设备检验标准(MIL-STD-810G)并通过轨道交通市场 EN50155(EN 50121-3-2 only)规范、以及车载应用E-mark认证。

Certifications icon
行业认证的强固设计

视频
详细规格
Model NameDI-1100
SystemProcessorOnboard 8th Intel® Core™ U Processors (Whiskey Lake)
• Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W)
• Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W)
• Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W)
Memory1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 620
Maximum Display OutputSupports Triple Independent Display
HDMI1x HDMI Connector (4096 x 2304@60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2x 10 Gbps USB 3.2 Gen2, Type A
• 2x 5 Gbps USB 3.2 Gen1, Type A
• 2x 480 Mbps USB 2.0, Type A
PS/21x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 )
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAIDSupport RAID 0/1
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket
SIM Socket2x SIM Socket
CMI (Combined Multiple I/O) Interface• 1x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition SensingSupport Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch1 x Clear CMOS Switch
Reset Button1 x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
PowerPower Button1 x ATX Power On/Off Button
Power Mode Switch1 x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget120W
PhysicalDimension ( W x D x H )203 x 142 x 66.8 mm
Weight Information1.74 KG
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 513,628 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindowsWindows® 10
LinuxSupports by project
EnvironmentOperating Temperature

• 15W CPU: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

• 15W CPU + 61.6W PoE + FAN: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* 4 Port PoE Full-load, IEEE 802.3af Class3(15.4 Watt)
* With extended temperature peripherals; Ambient with air flow

Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyIEC/EN 62368-1
订购信息
Available Models
Model No.Product Description
DI-1100-i3-R108th Generation Intel Core i3-8145UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i5-R108th Generation Intel Core i5-8365UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i7-R108th Generation Intel Core i7-8665UE High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
√ DI-1100 Embedded System x1√ Heatsink Pack x1
√ Wall Mount Kit x1√ Screw Pack x1
√ Remote Function Terminal Block Connector x 2√ Power Terminal Block Connector x1
√ Fan Terminal Block Connector x 1

Optional I/O Modules
Model No.Description
CMI-LAN01-R12 / UB1512-R10CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12 / UB1510-R10CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10 / UB1510-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-10GLAN04-R10 / UB1528-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM05-R10 / UB1503-R10CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout
CMI-DIO05-R10 / UB1518-R10CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-LAN-M102-30 / UB1511-R10Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
MEC-COM-M212-TDB9 / UB1503-R10Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout

Optional Function Modules
Model No.Description
CFM-PoE06-R10CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN102CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Accessories
Model No.Description
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
SIDE01SIDE Mount Kit
FAN-EX103External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
(*External fan must be installed when using CFM-PoE module)
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
