CV-W124 / P1101

24" Intel® Atom® / Pentium® 处理器,节能无风扇工业平板电脑
产品特点
  • 24" TFT-LCD Full HD 投射电容式或5线电阻式触摸屏、无触摸功能显示屏
  • 板载Intel® Atom® / Pentium® 处理器
  • 支持三重独立显示(1个VGA, 1个DisplayPort,1个CDS界面)

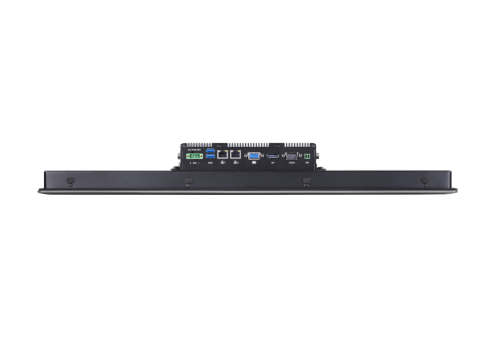

  • 丰富的I/O接口(2个GbE网口,4个USB 3.0,4个串口,8个独立DIO)
  • 2个全尺寸Mini-PCIe插槽,1个2.5” SATA HDD / SSD托盘,1个mSATA插槽
  • IP65防护等级的铝压铸前面板
  • 支持CDS和CFM(功能扩展模块)技术,可扩展网口供电(POE)和智能点火控制(IGN)
  • 支持面板安装、VESA安装、机架安装
产品介绍
CV-W124/P1101系列是一款24寸的无风扇、节能、坚固耐用的工业平板电脑,具有300 nits高亮度和1920 x 1080 (Full HD)分辨率。采用Intel® Atom® / Pentium®处理器,支持三重独立显示(1个VGA, 1个DisplayPort,1个CDS界面),具有丰富的I/O接口,包括2个GbE网口,4个USB 3.0,4个串口,8个独立DIO,2个全尺寸Mini-PCIe插槽和1个SIM卡插槽,用于各种无线数据连接。另外还可通过即插即用的CFM模块,可方便地为各种应用添加智能点火控制(IGN)和网口供电(POE)功能。

CV-W124/P1101系列还支持CDS技术,是一款可
自行配置与升级的转换型显示系统,与普通的平板电脑相比更加灵活,并且大大降低了维护成本。支持从-20°C到70°C的宽工作温度,9V到48V的宽压直流电源输入,各种工业级保护,IP65 防尘/防水前面板,适用于各种恶劣的环境和关键应用的场合。
详细规格
Model SeriesCV-W124/P1101
Model NameCV-W124R/P1101CV-W124C/P1101CV-W124G/P1101
DisplayLCD Size24" (16:9)
Max. Resolution1920 x 1080
Brightness (cd/m2)300
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemProcessor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
Memory• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
AudioRealtek ALC888-GR
I/O InterfaceVGA1x VGA (1920 x 1200 @60Hz)
DP1x DisplayPort (4K x 2K @60Hz)
LAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
Serial Port4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9
USB 4x USB 3.0 (Type-A)
Isolated DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Line-Out1x Phone Jack 3.5mm
Mic-In1x Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
Reset Button1x Rest Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
StorageSSD/HDD1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
mSATA1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
ExpansionPCI / PCIe-
CFM (Control Function Module) Interface- Optional CFM IGN Module for Power Ignition Function
- Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology1x CDS Interface for Convertible Display Module
Mini PCI Express2x Full-size Mini-PCIe Sockets
SIM Socket1x SIM Socket
Antenna Holes4x Antenna Holes
Other FunctionInstant RebootSupport 0.2sec
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC Adapter
.AC/DC 12V/5A, 60W
.AC/DC 24V/5A, 120W (Optional)
PhysicalDimension (WxHxD)605 x 373 x 76 mm
Weight InformationCV-W124R/P1101: 8.41 kg
CV-W124C/P1101: 8.13 kg
CV-W124G/P1101: 8.13 kg
Front Panel ConstructionFlat Rugged Aluminum Die-casting Bezel
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless DesignYes
ProtectionReverse Power Input ProtectionV
Over Voltage Protection58V
Over Current Protection15A
ESD Protection+/-15kV(Air), +/-8kV(Contact)
Surge Protection3.84 kV (impedance  12 ohm  1.2/50us waveform)
Operating SystemWindowsWindows® 10
LinuxSupport by project
EnvironmentOperating Temperature -10°C to 60°C (with extended temperature peripherals; Ambient with air flow) -20°C to 70°C (with extended temperature peripherals; Ambient with air flow) -20°C to 70°C (with extended temperature peripherals; Ambient with air flow)
Storage Temperature-20°C to 70°C-30°C to 80°C-30°C to 80°C
Relative Humidity80% RH @ 50°C (Non-Condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
订购信息
Available Models
Model No.Product Description
CV-W124C-R10/P1101-E50-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and
P-Cap. Touch
CV-W124R-R10/P1101-E50-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and
Resistive 5-wire Touch
CV-W124G-R10/P1101-E50-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and
without Touch
CV-W124C-R10/P1101-N42-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch
CV-W124R-R10/P1101-N42-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch
CV-W124G-R10/P1101-N42-R1024" TFT-LCD Full HD 16:9 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and without Touch

Package Checklist
 √ Panel PC x 1√ Power Terminal Block Connector x 1
 √ Utility DVD Driver x 1√ Remote Power On/Off Terminal Block Connector x 1
 √ Screw Pack x 1√ DIO Terminal Block Connector x 1
 √ Panel Mounting Kit x 1√ Thermal Pad (for CPU Thermal Block) x 1

Optional Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
