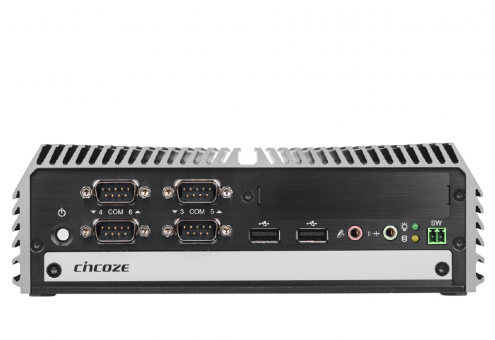

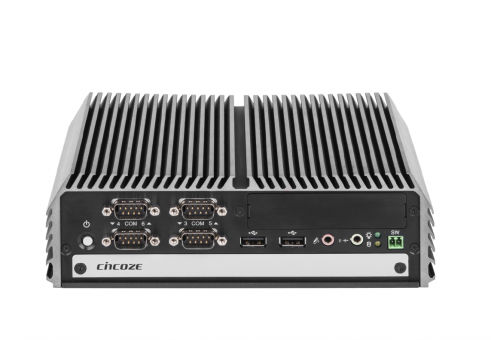

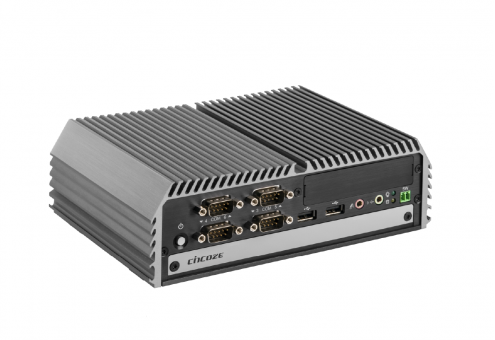

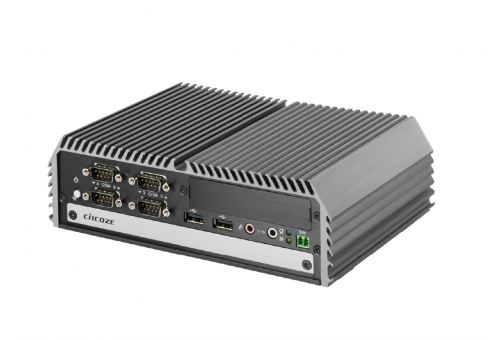

DI-1000-i7

第6代Intel® Core™处理器(Sky Lake-U),高性能、紧凑型和模块化的强固型嵌入式系统
产品特点
  • 板载第6代 Intel® Core™ i7-6600U处理器(BGA)
  • 1个DDR4 SO-DIMM 内存插槽,最高可达32 GB
  • 三重独立显示(DVI-I, DisplayPort)
  • 紧凑型尺寸(W203 x D142 x H66.8 mm) ,重量1.65 kg
  • 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘,支持RAID 0/1

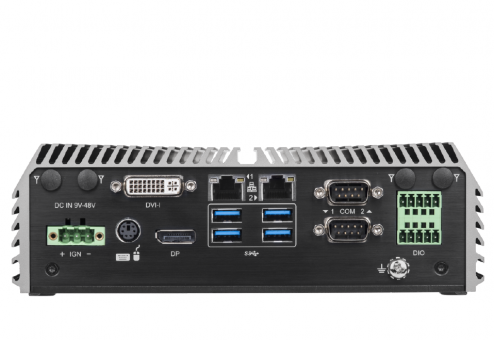

  • 丰富的I/O,包含1个DVI-I,1个DP,2个千兆网口,6个串口,6个USB和8路光学隔离 DIO
  • 支持I/O扩展的CMI接口
  • 支持POE +和智能点火控制(带可选配的CFM模块)
  • 2个全尺寸Mini-PCIe插槽,适用于各种I/O扩展
  • 宽工作温度 -40°C 至 70°C
  • EN50155铁路应用认证
  • E-Mark (E13, No. 10R-0514273)车载应用认证
产品介绍
德承DI-1000系列是一款高性能、紧凑、模块化的无风扇嵌入式计算机,采用第6代Intel®Core™移动处理器(Skylake-U),集成Intel®HD图形引擎,1个DDR4内存插槽最大可达32GB,使DI-1000系列能够满足各种高端计算需求。DI-1000系列尺寸W203 x D142 x H66.8毫米非常紧凑,却拥有无与伦比的I/O,包括DVI-I和DP显示接口,2 个千兆网口,6个串口,6个USB,8路光学隔离 DIO,1个PS / 2接口,音频输入输出和远程电源开关,支持两个全尺寸Mini-PCIe插槽可安装无线通信和I / O扩展,容纳两个2.5” SATA HDD / SSD(1个热插拔抽取式托盘和1个内置托盘)支持RAID 0/1,使DI-1000系列在市场上同紧凑尺寸机型中拥有无可匹敌的功能。

DI-1000系列仅重1.65公斤,支持4种安装方式(壁挂、导轨、侧挂和VESA),允许您安装在任何狭小的地方。搭配德承独特的CMI(接口扩展模块)、CFM(控制功能模块)和MEC(Mini-PCIe扩展模块)技术,使DI-1000系列可根据具体需要进行各式各样的扩展,包括多网口(RJ45 / M12)、网口供电(PoE)、智能点火控制和各种类型的I/O接口,DI-1000系列是工厂自动化、机器视觉、车载和移动监视应用的创新解决方案。
详细规格
Model NameDI-1000-i7
SystemProcessorOnboard Intel® Core™ i7-6600U Processor (3M Cache, 2.30 GHz, 15W TDP)
ChipsetSoC
Memory1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB
(2133MHz, Un-buffered and Non-ECC type)
Graphics• Integrated Intel® HD Graphics
• Three Independent Display
Audio• Realtek® ALC888-GR
• High Definition Audio
BIOSAMI 8Mbit SPI BIOS
I/O InterfaceDVI1x DVI-I Connector, Resolution 1920 x 1080
DP1x DisplayPort Connector, Resolution 3840 x 2160
LAN2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,
IEEE 1588v2 and PXE), RJ45
- GbE1: Intel I210-IT
- GbE2: Intel I219-LM
Serial Port6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB.4x USB 3.0, Type-A
.2x USB 2.0, Type-A
PS/2 Port1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
StorageSSD/HDD2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
(One Internal, One Front Accessible & Hot-swappable)
mSATA2x mSATA (Shared by Mini-PCIe Socket) (Gen3)
ExpansionCFM (Control Function Module) Interface1x CFM Interface for CFM Modules

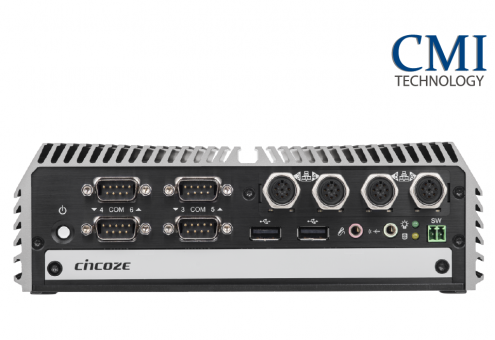

CMI (Combine Multiple I/O) Interface1x CMI Interface for CMI Modules

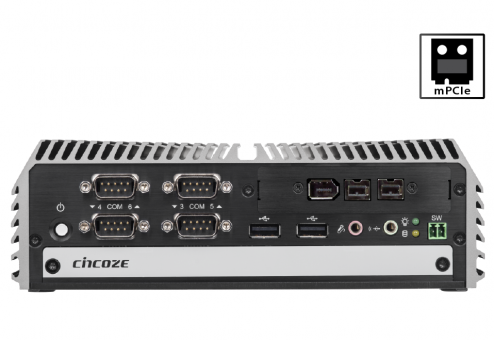

Mini PCI Express2x Full-size Mini PCIe Supports Wireless &  I/O Expansion
SIM Socket1x SIM Socket
Other FunctionCFMSupport CFM (Control Function Module) Technology
CMISupport CMI (Combined Multiple I/O) Technology
Instant RebootSupport 0.2sec
Super CapSuper Cap integrated for CMOS Battery Maintenance-free
Watchdog TimerSoftware Programmable Supports 256 Levles System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 12V/5A, 60W
.AC/DC 24V/5A, 120W
PhysicalDimension (WxDxH)203 x 142 x 66.8 mm
Weight Information1.65 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / Side / DIN-RAIL / VESA
Unibody DesignYes
Fanless DesignYes
Cable-less DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
ESD Protection+/-8kV (air), +/-4kV (contact)
Surge3.84 kV (impedance 12 ohm 1.2/50us waveform)
MTBFTime360, 145 Hours
Calculation ModelTelcordia SR-332 Issue 3, Method 1, Case 3
EnvironmentGB, GC
Temperature40°C
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
EnvironmentOperating TemperatureOperating Temperature: -40°C to 70°C
(With extended temperature peripherals; Ambient with air flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 70°C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
EMCCE,  FCC Class A
RailwayEN50155, EN50121-3-2
In-VehicleE-Mark (E13, No. 10R-0514273) Certified

订购信息
Available Models
Model No.Product Description
DI-1000-i76th Gen. Intel® Core™ i7-6600U High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
√ DI-1000 Embedded System x 1√ Power Terminal Block Connector x 1
√ CPU Heatsink Thermal Pad x 1√ Remote Power On/Off Terminal Block Connector x 2
√ Utility DVD Driver x 1√ DIO Terminal Block Connector x 2
√ Screw Pack x 1√ DVI-I to VGA Adaptor
√ Wall Mounting Kit x 1

Optional Accessories
Model No.Description
CFM-IGN102CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V

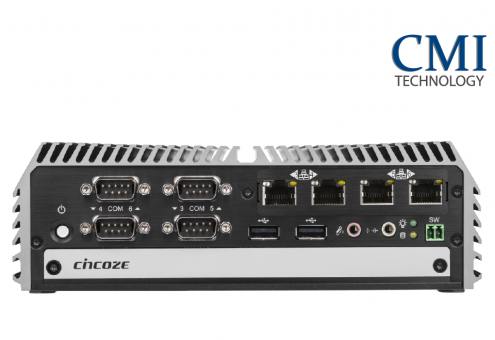

CMI-LAN104/UB0712CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket
CMI-PoE114/UB0712CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket
CMI-M12LAN104/UB0710CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket
CMI-M12PoE114/UB0710CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket
MEC-COM-M212/UB0703Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets
MEC-LAN-M002-R1/UB0711Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket
MEC-USB-M102-15/UB0714Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB
DIN01DIN-RAIL Mount Kit, KMRH-K175
SIDE01SIDE Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
