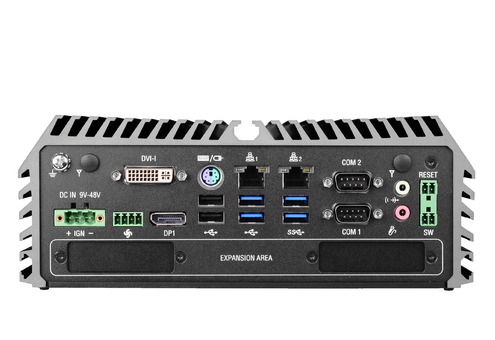

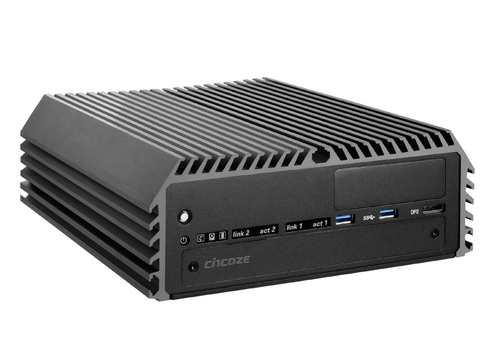

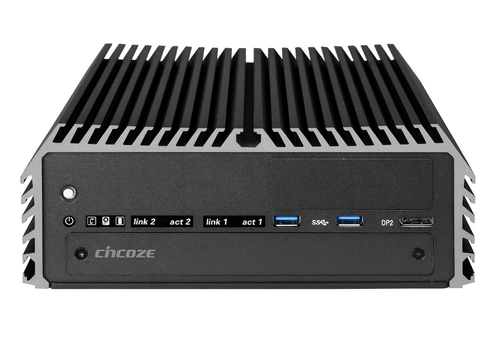

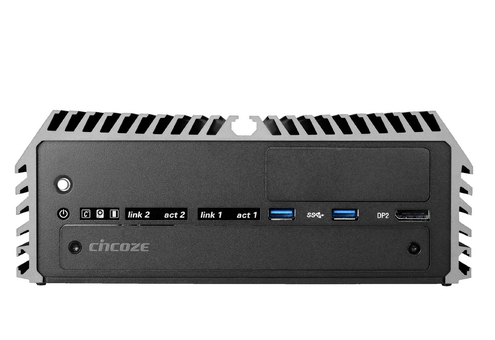

DS-1100

第7/6代Intel® Core™ i3 / i5 / i7 处理器, 高性能,扩展型和模块化的强固型嵌入式系统
产品特点
  • 支持第7/6代Intel® Xeon®和Core™ i3 / i5 / i7 处理器(LGA1151)
  • 2个DDR4 SO-DIMM 内存插槽,支持2133 / 2400MHz 64 GB
  • 三重独立显示 (1个DVI-I, 2个DP)
  • 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘,支持RAID 0/1
  • 2个可用于I/O扩展的CMI插槽
  • 1个CFM插槽,可扩展智能点火控制功能
  • 支持3个全尺寸Mini-PCIe插槽,可安装无线通信和I/O 扩展
  • 宽工作温度 -40°C 至 70°C
  • EN50121-3-2 Certified/ LVD EN62368-1
  • E-Mark (E13, No.10R-0514229) 车载应用认证
产品介绍
德承DS-1100系列是一款高性能的无风扇嵌入式计算机,采用7/6代Intel®Core™平台,支持多种台式机CPU(LGA1151) ,支持两个DDR4内存插槽,可达64GB,使DS-1100系列能够满足各种高端计算需求。DS-1100系列具有丰富的I/O接口、串口供电、电隔离串口、光隔离数字I/O、多网口、网口供电(POE)、M12接口、RAID 0/1、智能点火控制和0.2秒即时重启等功能。

由于德承的CMI和CFM技术,您可根据具体需要使用我们现成的模块配置专属的DS-1100系列。DS-1100系列是一款坚固耐用的嵌入式系统,具有宽工作温度(-40°C ~ 70°C),宽压直流电源输入(9V ~ 48V),防震抗冲击能力强(5G/50G),高标准的工业保护,具有超级电容可免维护长效运行等特点。DS-1100系列适用于恶劣环境和关键应用场合的部署,无需现场人员的维护。
详细规格
Model NameDS-1100
SystemProcessor• 7th Generation Intel® CPU (Kaby Lake-S)
- Intel® Core™ i7-7700T Processor (8M Cache, up to 3.8 GHz, 35W TDP)
- Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W TDP)
- Intel® Core™ i3-7101TE Processor (3M Cache, 3.40 GHz, 35W TDP)
- Intel® Celeron® G3930TE Processor (2M Cache, 2.70 GHz, 35W TDP)
- Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W TDP)
- Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz, 65W TDP)
- Intel® Celeron® G3930E Processor (2M Cache, 2.90 GHz, 54W TDP)
• 6th Generation Intel® CPU (Skylake-S)
- Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP)
- Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP)
- Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP)
- Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP)
- Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP)
- Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP)
- Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP)
- Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP)
- Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP)
- Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)
ChipsetIntel Q170
Memory2x DDR4 2133/2400 MHz SO-DIMM Sockets
* Core I 7th Generation / Celeron Processor Supports Up to 2400MHz
* Core I 6th Generation / Pentium / Celeron Processor Supports Up to 2133MHz
Supports Un-buffered and Non-ECC Type Up to 64 GB
Graphics.Integrated Intel® HD Graphics
.Three Independent Display
AudioRealtek ALC888-GR, High Definition Audio
BIOSAMI 16 Mbit SPI BIOS
I/O InterfaceDVI1x DVI-I connector, Up to 1920x1080@60Hz
DP2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
LAN2x 10/100/1000 Mbps, RJ45
GbE1: Intel I219-LM
GbE2: Intel I210
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
Optional Module
.4x 10/100/1000 Mbps, RJ45 Port
.4x 10/100/1000 Mbps, M12 Port
PoE+Optional Module
.4x PoE+, Individual port 25.5W, RJ45 Port
.4x PoE+, Individual port 25.5W, M12 Port
Serial Port2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Optional Module
.4x RS-232/422/485, DB9 Connector
.4x Electrical Isolated RS-232/422/485, DB9 Connector
USB.6x USB 3.2 Gen1, Type-A
.2x USB 2.0, Type-A
PS/2 Port1x PS/2, 6-pin mini-DIN Female Connector
Optical Isolated DIOOptional Module
.8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector1x External FAN Connector, 4-pin Terminal Block
StorageSSD/HDD2x 2.5" SATA HDD/SSD bay (Gen3)
One Internal, One Front Accessable
Support RAID 0/1, Hot Swap
mSATA3x mSATA (Shared by Mini-PCIe Socket) (Gen3)
ExpansionPCI/ PCIe-
CFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface2x CMI Interface for CMI Modules
Mini PCI Express3x Full-size Mini PCIe
Supports Wireless &  I/O Expansion
Universal I/O Bracket2x Universal I/O Bracket
SIM Socket1x SIM Socket
Antenna Holes2x Antenna Holes
OtherInstant RebootSupport 0.2sec
Power Ignition SensingOptional Module
.CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
SuperCapSuperCap integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 24V/5A, 120W
.AC/DC 24V/9.2A, 220W
PhysicalDimension (WxDxH)227 x 261 x 88 mm
Weight Information4.7 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Unibody DesignYes
Fanless DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
Operating SystemWindows- 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10
- 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7
LinuxSupports by project
EnvironmentOperating Temperature7th Generation Intel® CPU (Kaby Lake-S)
- 35W TDP CPU: -40°C to 50°C
- 51W~65W TDP CPU: -40°C to 45°C
6th Generation Intel® CPU (Skylake-S)
- 35W TDP CPU: -40°C to 70°C
- 51~65W TDP CPU: -40°C to 50°C
(With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity70°C @ 95% RH (non-Condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1


订购信息
Available Models
Model No.Product Description
DS-1100-R207/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

Package Checklist
√ DS-1100 Embedded System x1√ DVI-I to VGA Adaptor
√ Power Terminal Block Connector x1√ Screw Pack x 1
√ Remote Power On/Off Terminal Block Connector x2√ Wall Mounting Kit x1
√ FAN Terminal Block Connector x1√ Heat Sink Pack x 1

Optional Modules & Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm)
CFM-PoE03CFM Module with PoE Control Function for DS series, Individual Port 25.5W
CMI-CD100/FB20CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1100 Front Bezel
CMI-ICD100/FB20CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1100 Front Bezel

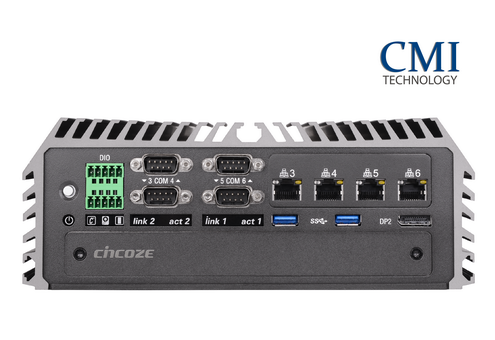

CMI-LAN01-R12/UB0612CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1100 Series

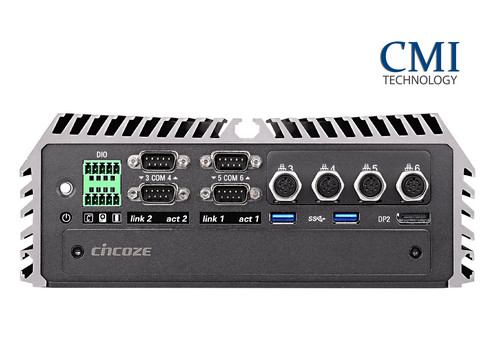

CMI-M12LAN01-R12/UB0610CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1100 Series
CMI-XM12LAN01-R10/UB0630-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
MEC-LAN-M102-30/UB0311Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
MEC-USB-M102-30/UB0314Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable, 1xUniversal Bracket with 2x USB Cutout
MEC-COM-M212-DB9/UB0303Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x Universal Bracket each with 1x DB9 Cutout
PAH-101Power Adapter Holder for GST120A24 (200 x 78 x 46 mm)
PAH-201Power Adapter Holder for GST220A24 (243 x 95 x 57 mm)
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
