Taipei, Taiwan - March 21, 2016
Cincoze DA-1000 Combines Innovative Modularity, Rugged Design that Fulfills Wide Range of Applications
DA-1000 Series Fanless Embedded Computer
Ultra-Compact Volume and High Elasticity with Price Competitiveness
Cincoze has unveiled the new DA-1000 Series Fanless Embedded Computer today, DA-1000 series is an ultra-compact volume fanless embedded computer basing on Intel® Atom E3826 platform; it has 1.46GHz and integrated HD graphics processor. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks.
Cincoze DA-1000 manages to pack a diverse array of I/O into its small form factor, It features sufficient I/O interfaces to make use of the advance of computing power, such as one DVI-I port, two RS-232/422/485 COM ports, dual Gb LAN ports, four USB ports and one set of Mic-in and Line-out.

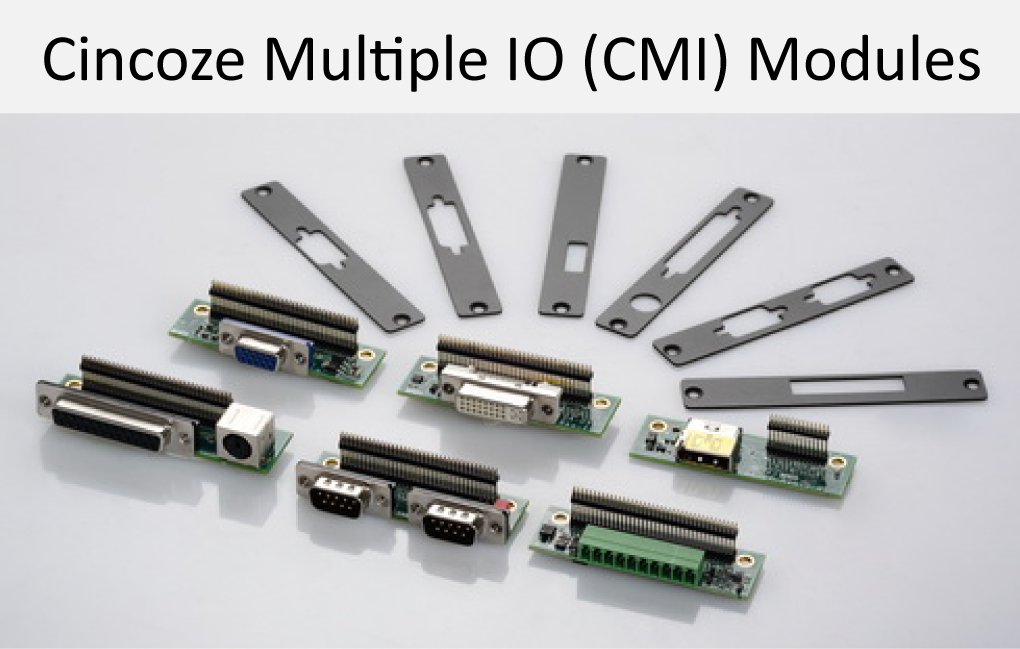

In the meantime, Cincoze is proudly presenting the CMI (Cincoze Multiple IO) interface and modules especially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. Cincoze provides derivative 6 models with different I/O configuration so you can always find a perfect DA-1000 for your application.
Size does matter! Another attractive feature of DA-1000 Series is its ultra-compact volume (W150xD105xH56.02mm), it makes installation of DA-1000 becomes extremely easy. And its -25°C to 70°C operating temperature, the rugged construction and high tolerance for shock and vibration eliminates the restriction for harsh environments.
EASY TO FIT IN
• Support diverse mounting kits for space limited application
• CMI interface offers the possibilities to extend I/O in a small footprint construction
ECONOMIC & EFFICIENT
• Ultra-compact volume but without compromise for the mass storage
• Save budget and pay-for-need
TOUGHNESS & ELASTICITY
• Wide temperature range for operating for harsh environment
• Support wireless communication and third party add on cards
• Jumper-less design brings the benefit of high tolerance for shock and vibration

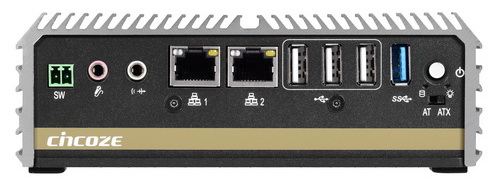

DA-1000 1x DVI-I, 2x COMs
The DA-1000 manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gb LAN ports, four USB ports and one set of Mic-in and Line-out.
Specification• Intel® Atom™ E3826 1.46 GHz
• DDR3L 1333/1066MHz Up to 8GB
• Intel® HD Graphics 667 MHz
• Support Dual Display
• Jumper-free & Cable-less Design
• Support AT/ATX Power Mode
• Power Input Voltage 9~48VDC
• One 3-pin Terminal Block Connector
• Power Consumption Typical 8.3W
• Reverse Power Input Protection
• Over Voltage Protection (OVP) Up to 51V
• Over Current Protection (OCP) 120V/ 20A
• ESD Protection Air Discharge
• Operating Temperature: .-25°C to 70°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 40˚C@95% RH
• OS: Windows 7/8/10 or Linux Ubuntu 14.04
• Certification: CE, FCC Class A
• Dimension: 150(W)x105(D)x56.02(H)mm
• Weight: 0.86kg (Net); 1.68kg (Gross)
External I/O (DA-1000)• 1x DVI-I Port
• 2x GbE LAN Ports (Intel® I210, Support Wake On Lan, Teaming, Jumbo Frame, PXE)
• 2x COM Ports (DB9, RS232/RS422/RS485 with Auto Flow Control)
• 1x USB 3.0 Ports
• 3x USB 2.0 Ports
• 1x Mic-in and 1x Line-out (Codec: Realtek ALC888S)
• 1x Power On/Off Switch
• 1x AT/ATX Switch
• 1x Remote Power On/Off Connector (2-pin Terminal Block)
• 1x Universal I/O Bracket
• 2x Antenna Holes

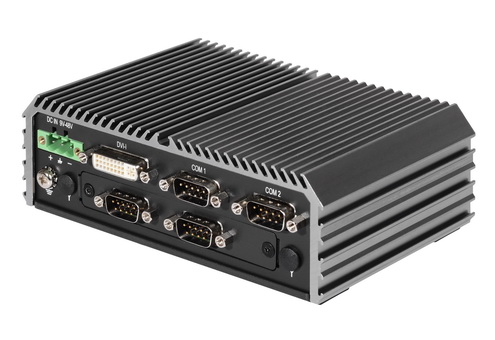

1x DVI-I, 4x COMs DIOs

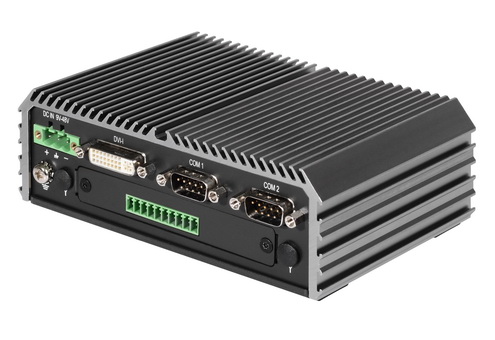

1x DVI-I, 2x COMs, 8x DIOs

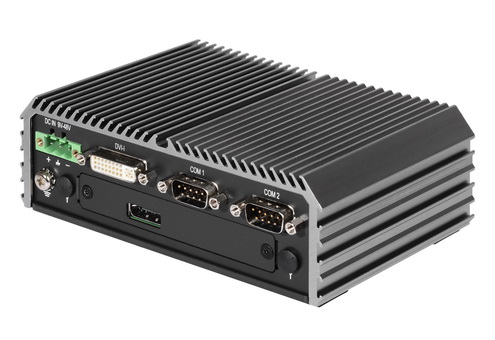

1x DVI-I, 1x DisplayPort, 2x COMs

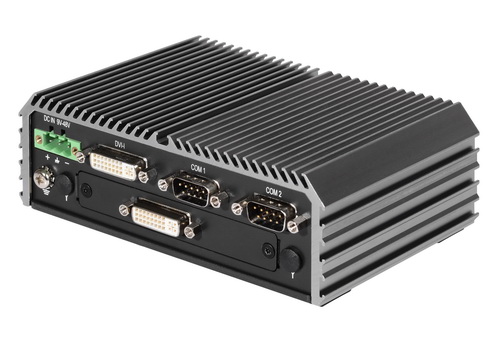

1x DIV-I, 1x DVI-D , 2x COMs

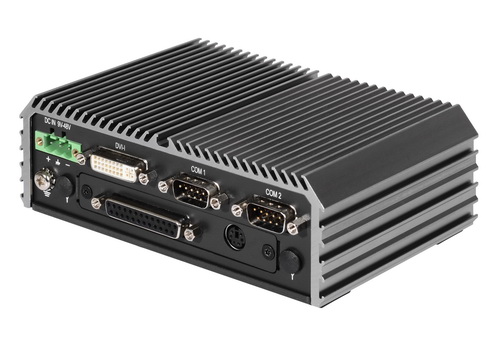

1x DVI-I, 2x COMs, 1x LPT, 1xPS/2

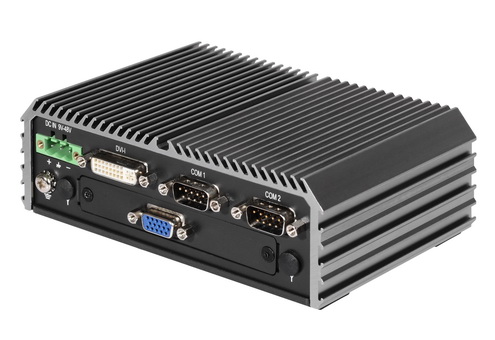

1x DVI-I, 1x VGA , 2x COMs
|DA-1000||Intel® Atom™ E3826 Affordable Fanless Embedded Computer|
|DA-1000C||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 2x COMs|
|DA-1000D||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 8x DIOs|
|DA-1000DP||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 1x DisplayPort|
|DA-1000DV||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 1x DVI-D|
|DA-1000LPPS||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 1x LPT and 1x PS/2|
|DA-1000V||Intel® Atom™ Processor E3826 Affordable Fanless Embedded Computer with Additional 1x VGA|
Cincoze is a professional manufacturer providing industrial computing system solution. We design, manufacture, and market highly engineered and innovative products to meet the demanding industrial application markets.
